Polygon SISKIU D7 2020

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
14,3 kg
Front travel
120mm
Rear travel
120mm

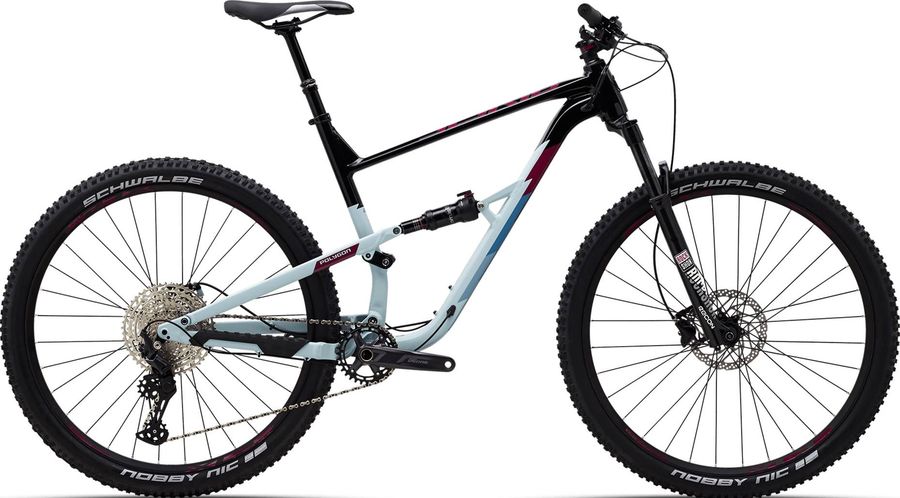

Polygon SISKIU D7 2020

About the Polygon SISKIU D7 2020

The Polygon SISKIU D7 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 14,3 kg.

Features

The Polygon SISKIU D7 2020 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
ENTITY XPERT, ALLOY
Saddle
ENTITY VOID SADDLE
Seatpost
TRANZX DROPPER 150mm (27.5") / 170mm (29")
Handlebar
ENTITY XPERT, ALLOY
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SHIMANO DEORE FC-M5100 32T
Shifter
SHIMANO DEORE SL-M5100, 1x11SPEED TRIGGER
Bottom bracket
SHIMANO DEORE
Rear derailleur
Shimano Deore RD-M5100-SGS SGS 11s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X11 11-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M5100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
40T
Cassette
Shimano Deore CS-M5100-11 HG
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
11-42T
11-51T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M5100-11
Steel gear finish
Plated
Steel gear pieces
11
Type
HG
Chain
KMC X11
Frameset
Frame
ALX XC 120MM TRAVEL (27.5”) / 120MM TRAVEL (29”), TAPER H/T TA BOOST
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
ALLOY DOUBLE WALL 32H
Tires
SCHWALBE NOBBY NIC PERFORMANCE 27.5"x2.25" / 29"x2.25"

Geometry

Size SM MD MD LG XL
a
Seat tube length
395,0
435,0
435,0
487,0
522,0
b
Seat tube angle
75,5º
75,5º
76,0º
76,0º
76,0º
c
Top tube length
567,7
590,1
598,9
619,3
641,7
d
Head tube length
102,0
105,0
102,0
112,0
122,0
e
Head tube angle
67,0º
67,0º
67,5º
67,5º
67,5º
f
Rake
42,0
42,0
51,0
51,0
51,0
g
Trail
105,0
105,0
100,0
100,0
100,0
h
Wheelbase
1128,0
1152,0
1160,0
1184,0
1208,0
i
Chainstay length
427,0
427,0
431,0
431,0
431,0
j
Bottom bracket drop
27,0
27,0
47,0
47,0
47,0
k
Stack height
566,2
575,4
601,7
610,9
620,2
l
Reach
420,0
440,0
440,0
460,0
480,0
m
Standover height
671,0
691,0
693,0
728,0
756,0
x
Bottom bracket height
326,0
326,0
326,0
326,0
326,0
y
Front center
702,0
726,0
733,0
757,0
781,0
