BikeWise

Polygon SISKIU N8 2019

MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
14,5 kg
Front travel
170mm
Rear travel
170mm
Polygon SISKIU N8 2019

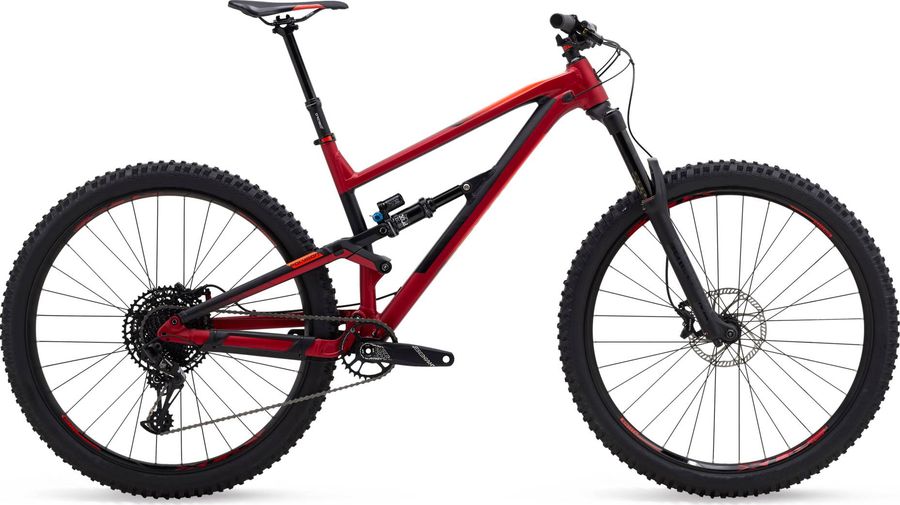

About the Polygon SISKIU N8 2019

The Polygon SISKIU N8 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 14,5 kg.

Features

The Polygon SISKIU N8 2019 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
ENTITY XPERT, ALLOY E:45MM R:7DEG BB:31.8MM
Saddle
ENTITY ASSAULT
Seatpost
ADJUSTABLE HEIGHT W/ 125MM (S-M)/150MM (L-XL), ZERO OFFSET, 30.9MM
Handlebar
ENTITY XPERT, ALLOY W:780MM R:30MM BB:31.8MM
Brakes
Tektro HD-M745
Drivetrain
Crankset
TRUVATIV DESCENDANT 6K ALUMINUM 12-SPEED 32T NARROW-WIDE DUB SPINDLE BOOST 170MM (S-M)/175MM (L-XL)
Shifter
SRAM NX EAGLE 12-SPEED
Bottom bracket
SRAM DUB BSA
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Chain
KMC X12
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
ALX AM / ENDURO 170MM TRAVEL (27.5”) / 160MM TRAVEL (29”), TAPER H/T
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
Fox Float DPX2 Performance EVOL
Wheels
Rims
ENTITY XL2 DISC 35-584 (27.5”) / 29-622 (29”)
Tires
SCHWALBE MAGIC MARRY, 27.5”X2.60” / 29”X2.35”

Geometry

Size SM MD MD LG XL
a
Seat tube length
400,0
430,0
430,0
470,0
520,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
75,0º
c
Top tube length
563,8
593,8
600,1
624,5
656,2
d
Head tube length
100,0
100,0
90,0
102,0
115,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
65,5º
f
Rake
42,0
42,0
51,0
51,0
51,0
g
Trail
116,0
116,0
115,0
115,0
115,0
h
Wheelbase
1153,9
1183,9
1194,9
1221,1
1255,3
i
Chainstay length
435,0
435,0
439,4
439,4
439,4
j
Bottom bracket drop
5,0
5,0
33,0
33,0
33,0
k
Stack height
592,7
592,7
616,1
626,1
638,8
l
Reach
405,0
435,0
435,0
456,6
485,0
m
Standover height
720,7
718,8
720,0
743,1
773,7
x
Bottom bracket height
355,0
355,0
343,5
343,5
343,5
y
Front center
719,0
749,0
757,0
784,0
818,0
