Polygon SISKIU T8 2020

MTB Trail
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
15,2 kg
Front travel
150mm
Rear travel
140mm

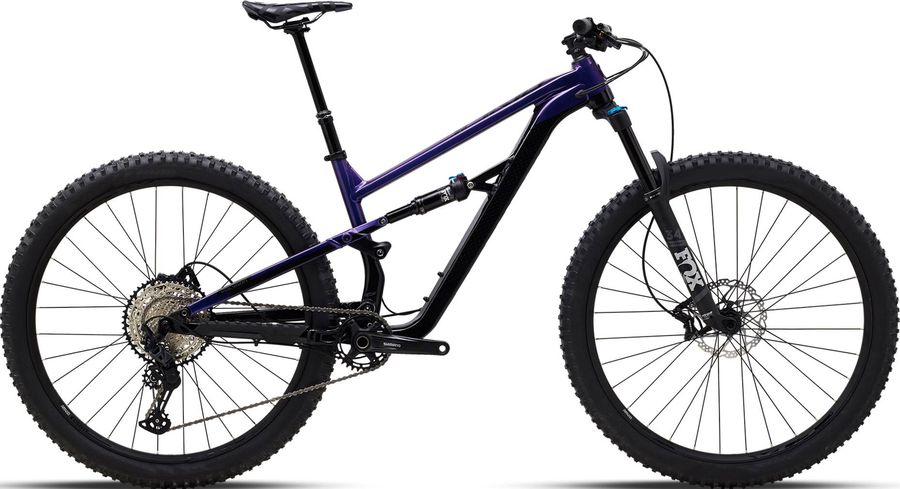

Polygon SISKIU T8 2020

About the Polygon SISKIU T8 2020

The Polygon SISKIU T8 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 15,2 kg.

Features

The Polygon SISKIU T8 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
ENTITY XPERT, ALLOY E:35MM R:7DEG BB:35MM
Saddle
ENTITY XTENT
Seatpost
TRANZ-X 150MM (S-M) 170 (L-XL) TRAVEL, ZERO OFFSET, 30.9MM
Handlebar
ENTITY XPERT, ALLOY W:780MM R:20MM BB:35MM
Brakes
Tektro HD-M745
Drivetrain
Crankset
SHIMANO FC-MT510-1 BOOST 32T 170MM (S-M)/175MM (L-XL)
Shifter
SHIMANO SL-M7100-R SLX
Bottom bracket
BSA THREADED
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
KMC X12
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
ALX TRAIL FRAME 140MM TRAVEL (27.5”) / 135MM TRAVEL (29”), TAPER H/T
Rear suspension
Fox Float DPS
Front suspension
Fox 34 Rhythm
Wheels
Rims
ENTITY XL2 DISC 584-35 (27.5”) / 622-35 (29”)
Tires
PERFORMANCE TIRE, 27.5”X2.40” / 29”X2.40”

Geometry

Size SM MD MD LG XL
a
Seat tube length
385,0
400,0
400,0
415,0
430,0
b
Seat tube angle
76,5º
76,5º
76,5º
76,5º
76,5º
c
Top tube length
584,5
607,7
607,9
631,1
654,4
d
Head tube length
105,0
120,0
90,0
105,0
120,0
e
Head tube angle
65,0º
65,0º
65,5º
65,5º
65,5º
f
Rake
37,0
37,0
42,0
42,0
42,0
g
Trail
125,0
125,0
125,0
125,0
125,0
h
Wheelbase
1174,8
1201,1
1195,5
1221,7
1247,9
i
Chainstay length
427,0
427,0
432,0
432,0
432,0
j
Bottom bracket drop
20,0
20,0
39,0
39,0
39,0
k
Stack height
595,5
609,1
609,6
623,2
636,9
l
Reach
442,0
462,0
462,0
482,0
502,0
m
Standover height
668,6
674,5
678,6
688,2
697,9
x
Bottom bracket height
335,0
335,0
335,0
335,0
335,0
y
Front center
749,0
775,0
766,0
792,0
819,0
