Polygon SYNCLINE C3 2021

MTB Trail
Groupset
Shimano Deore
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Hardtail
Front travel
120mm

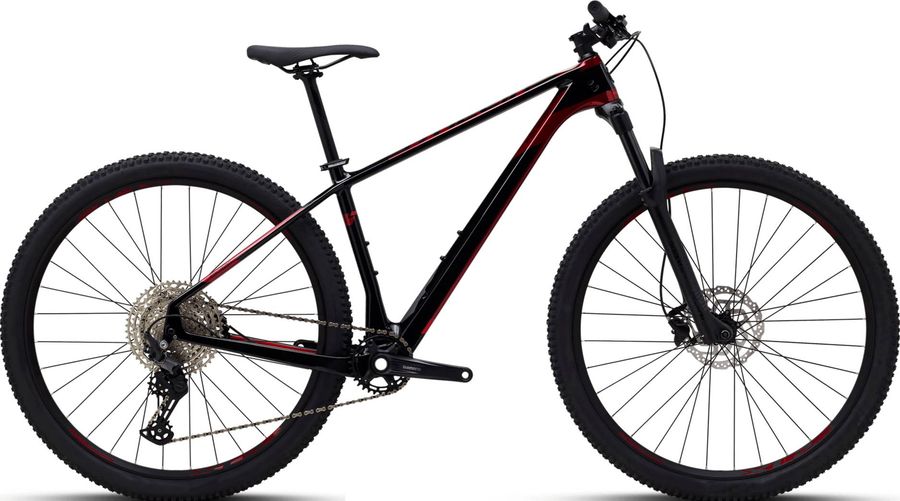

Polygon SYNCLINE C3 2021

About the Polygon SYNCLINE C3 2021

The Polygon SYNCLINE C3 2021 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a Shimano Deore drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes.

Features

The Polygon SYNCLINE C3 2021 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
ENTITY XPERT, ALLOY
Saddle
ENTITY VOID SADDLE
Seatpost
ENTITY XPERT, ALLOY
Handlebar
ENTITY XPERT, ALLOY
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SHIMANO FC-MT510 32T
Shifter
SHIMANO DEORE SL-M6100, 1x12-SPEED
Bottom bracket
SHIMANO MT500
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Rear derailleur
Shimano Deore RD-M6100 SGS 12s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M6100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
KMC X12
Frameset
Frame
ACX XC PERFORMANCE
Front suspension
RockShox Recon
Wheels
Rims
ENTITY XL2 32H
Tires
WTB TRAIL BOSS 27.5"x2.25" / 29"x2.25"

Geometry

Size SM MD MD LG XL
a
Seat tube length
380,0
420,0
420,0
460,0
500,0
b
Seat tube angle
75,3º
75,3º
75,3º
75,3º
75,3º
c
Top tube length
566,0
591,6
594,7
618,0
646,15
d
Head tube length
100,0
120,0
100,0
120,0
140,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
67,0º
f
Rake
37,0
37,0
44,0
44,0
44,0
g
Trail
111,0
111,0
111,0
111,0
111,0
h
Wheelbase
1103,94
1131,8
1146,5
1173,9
1201,76
i
Chainstay length
422,0
422,0
432,0
432,0
432,0
j
Bottom bracket drop
45,0
45,0
65,0
65,0
65,0
k
Stack height
593,6
612,0
630,2
648,6
667,0
l
Reach
407,0
427,0
427,0
447,0
467,0
m
Standover height
687,9
726,2
727,8
760,7
776,2
x
Bottom bracket height
308,5
308,5
307,5
307,5
307,5
y
Front center
686,0
714,0
722,0
750,0
777,0
