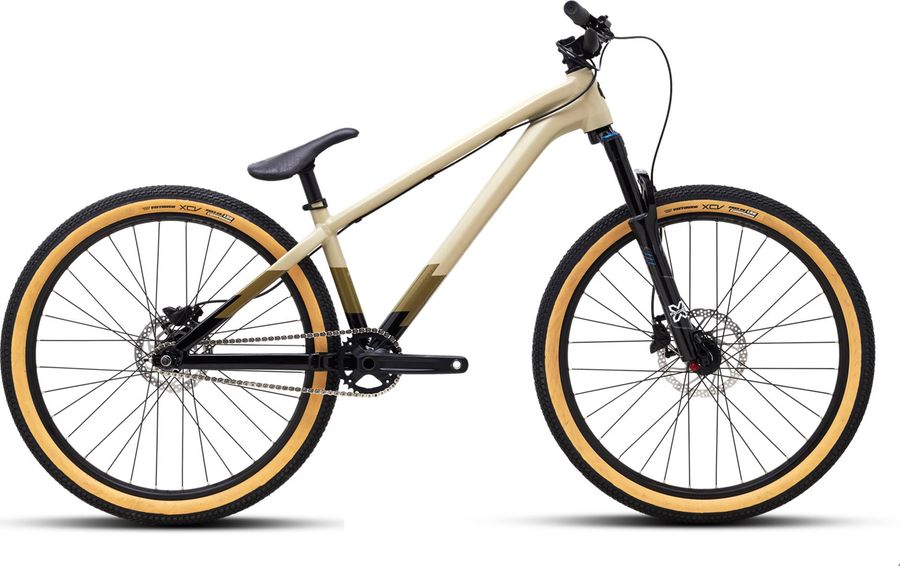

Polygon TRID 2020
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Weight
12,8 kg
Front travel
100mm
About the Polygon TRID 2020
The Polygon TRID 2020 is a Hardtail Mountain Bike with a alloy frame. Its features include hydraulic disc brakes. The bike weighs approximately 12,8 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Steam
|
ALLOY E:40MM R:0DEG BB:31.8MM
|
|---|---|
|
Saddle
|
POLYGON PIVOTAL SADDLE
|
|
Seatpost
|
ALLOY, PIVOTAL, 30.9X200MM
|
|
Handlebar
|
ALLOY W:750MM R:38.1MM BB:3.18MM
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Chain
|
KMC HL-710
|
|---|---|
|
Crankset
|
SAMOX TAF15-D32A 32T, 170MM
|
|
Cassette
|
COG 14T
|
|
Bottom bracket
|
SAMOX INTEGRATED BB BSA
|
|
Frame
|
AL6 DIRT JUMP, 135MM O.L.D. 100MM TRAVEL, IS MOUNT 160MM
|
|---|---|
|
Front suspension
|
X-Fusion Slant
|
|
Rims
|
WTB SX-25 DISC 26"
|
|---|---|
|
Tires
|
VEE XCV, 26”X2.25”
|
Geometry
| Size | All Size |
|---|---|
|
a
Seat tube length
|
-
|
|
b
Seat tube angle
|
72,0º
|
|
c
Top tube length
|
600,0
|
|
d
Head tube length
|
120,0
|
|
e
Head tube angle
|
70,0º
|
|
f
Rake
|
42,0
|
|
g
Trail
|
80,0
|
|
h
Wheelbase
|
1047,2
|
|
i
Chainstay length
|
385,0
|
|
j
Bottom bracket drop
|
12,0
|
|
k
Stack height
|
564,27
|
|
l
Reach
|
416,7
|
|
m
Standover height
|
651,9
|
|
x
Bottom bracket height
|
327,0
|
|
y
Front center
|
662,0
|
