Polygon TRID ZZ 2019

Groupset
SRAM GX
Frame material
Alloy
Wheel size
26"
Suspension type
Full suspension
Weight
13,6 kg
Front travel
100mm
Rear travel
100mm
Polygon TRID ZZ 2019

About the Polygon TRID ZZ 2019

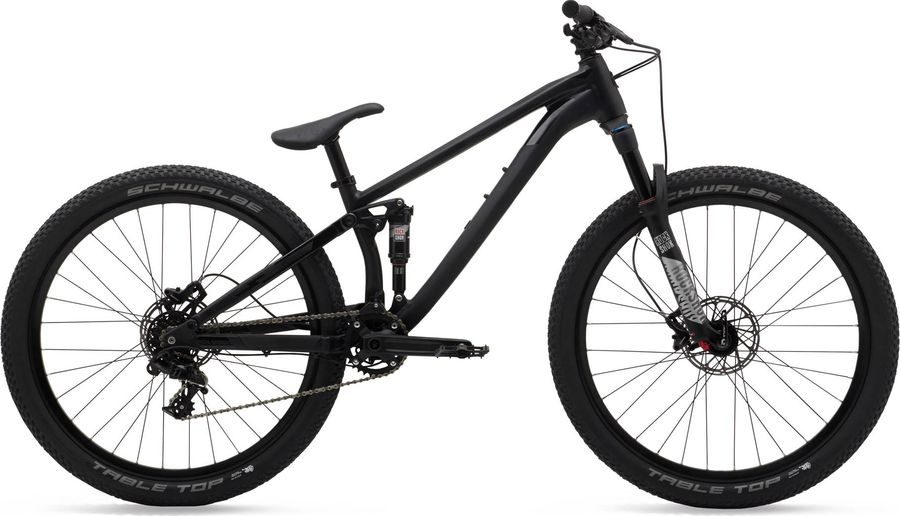

The Polygon TRID ZZ 2019 is a Full suspension Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 7 gears (1x7). Its features include hydraulic disc brakes e tapered head tube. The bike weighs approximately 13,6 kg.

Features

The Polygon TRID ZZ 2019 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Pedals
Flat, nylon composite
Components
Steam
ALLOY, 40MM
Saddle
POLYGON PIVOTAL SADDLE
Headset
Polygon internal sealed bearing, ID:44/56mm
Seatpost
ALLOY, PIVOTAL, 30.9X200MM
Handlebar
ALLOY, 750MM
Brake lever
SRAM DB5
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SAMOX TAF15-D32NA 32T, 170MM, NARROW WIDE
Shifter
SRAM GX DH X-ACTUATION
Bottom bracket
SAMOX INTEGRATED BB BSA
Rear derailleur
SRAM GX DH 7s
Cable pull ratio
Exact actuation
Cage
Medium
Cage material
Aluminum
Color
Black
Max tooth
28
Model
RD-GX-1DH-A3
Name
GX DH 1x X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
7s
Chain
SRAM PC-1130 259 g
Chain connector
PowerLock
Chain length links
114 links, 120 links
Color inner link
Grey
Color outer link
Silver
Compat speed
11s
Inner link finish
Polished
Model
CN-1130-A1
Name
PC-1130 Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Cassette
SRAM PG-720 7s 224 g
Cog finish cassete
Black
Cog sizes
11-25t:11,13,15,17,19,22,25
Gearing
11-25t
Model
CS-PG-720-A1
Name
PG-720 Cassette
Speed
7s
Technology cassete
PG
Weight
224
Frameset
Frame
AL6 SLOPE STYLE, 100MM TRAVEL, POSTMOUNT 160MM, -
Rear suspension
RockShox Monarch R 205 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Model
RS-MNR-R-C3
Name
Monarch R
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
205
Front suspension
RockShox Pike DJ Solo Air 1839 g
Color
Diffusion Black, Gloss Black
fork offset
40mm (26")
Max tire width (mm)
66
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-PIKE-DJ-A3
Name
Pike DJ
Spring
Solo Air
Travel (mm)
100mm, 140mm
Upper tube type
35mm tapered wall aluminum
Weight based on
140mm, Maxle Ultimate
Weight
1839
Wheel size
26"
Wheels
Rims
ALLOY DOUBLE WALL RIMS WITH ALLOY HUBS
Tires
PERFORMANCE TIRE, 26”X2.25”
Spokes
Alloy double wall rims with alloy hubs wheelset
Rear hub
Alloy double wall rims with alloy hubs wheelset
Front hub
Alloy double wall rims with alloy hubs wheelset

Geometry

Size 12.5"
a
Seat tube length
330,0
b
Seat tube angle
-
c
Top tube length
573,0
d
Head tube length
120,0
e
Head tube angle
69,0º
f
Rake
40,0
g
Trail
89,0
h
Wheelbase
1077,1
i
Chainstay length
398,0
j
Bottom bracket drop
8,0
k
Stack height
556,5
l
Reach
423,0
m
Standover height
647,0
x
Bottom bracket height
331,0
y
Front center
679,0
