Polygon XQUARONE DH8 2020

MTB Downhill
Groupset
SRAM GX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
16,12 kg
Rear travel
218mm
Polygon XQUARONE DH8 2020

About the Polygon XQUARONE DH8 2020

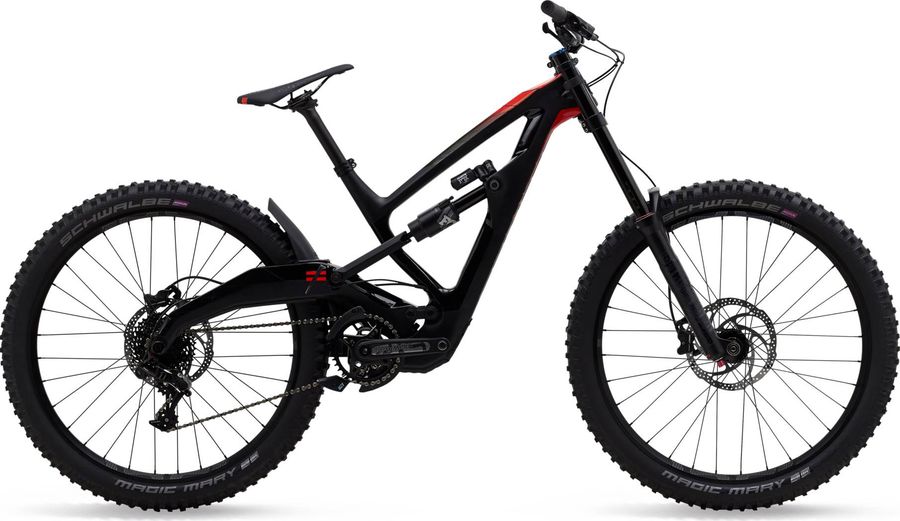

The Polygon XQUARONE DH8 2020 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes. The bike weighs approximately 16,12 kg.

Features

The Polygon XQUARONE DH8 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
RACE FACE CHESTER 35 DIRECT MOUNT
Saddle
ENTITY ASSAULT
Seatpost
ENTITY, 30.9MM
Handlebar
RACE FACE CHESTER 35
Brakes
TRP Quadiem
Drivetrain
Crankset
E13 LG1 36T BOOST, 165MM
Shifter
SRAM GX 11-SPEED
Bottom bracket
E13 BB92 PRESSFIT
Rear derailleur
SRAM GX 1x11 X-HORIZON Rear Derailleur 11s 265 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black, Blue, Red
Max tooth
42
Model
RD-GX-1-A1
Name
GX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight based on
RD 1x11 Long Cage Black
Weight
265
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
KMC X11
Frameset
Frame
NAILD R3ACT 2PLAY SUSPENSION ACX, 218MM TRAVEL, SUPER BOOST 157MM O.L.D.
Front suspension
RockShox Boxxer RC Air DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Charger
fork offset
46mm (27.5"), 56mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-BXR-RC-C1
Name
BoXXer RC
Spring
DebonAir
Travel (mm)
180mm, 190mm, 200mm
Upper tube type
35mm straight wall aluminum
Wheel size
27.5", 29"
Rear suspension
Fox Float X2 Performance
Wheels
Rims
E13 LG1
Tires
SCHWALBE MAGIC MARY 27.5”X2.50”

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
400,0
400,0
400,0
b
Seat tube angle
73,4º
73,4º
73,1º
73,1º
c
Top tube length
577,38
602,38
633,51
658,51
d
Head tube length
97,52
97,52
108,75
108,75
e
Head tube angle
63,0º
63,0º
63,0º
63,0º
f
Rake
52,0
52,0
52,0
52,0
g
Trail
123,0
123,0
123,0
123,0
h
Wheelbase
1198,76
1223,75
1253,85
1278,85
i
Chainstay length
440,46
440,46
440,46
440,46
j
Bottom bracket drop
6,25
6,25
6,25
6,25
k
Stack height
595,0
595,0
605,0
605,0
l
Reach
400,0
425,0
450,0
475,0
m
Standover height
703,05
703,05
703,05
703,05
x
Bottom bracket height
350,75
350,75
350,75
350,75
y
Front center
758,0
783,0
813,0
838,0
