Polygon XQUARONE DH9 2020

MTB Downhill
Groupset
SRAM X01
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
16,12 kg
Rear travel
218mm

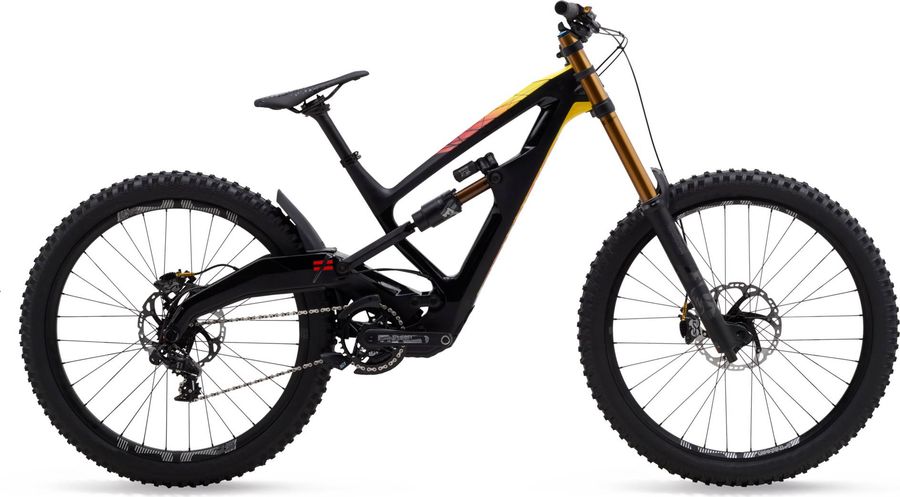

Polygon XQUARONE DH9 2020

About the Polygon XQUARONE DH9 2020

The Polygon XQUARONE DH9 2020 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 7 gears (1x7). Its features include hydraulic disc brakes. The bike weighs approximately 16,12 kg.

Features

The Polygon XQUARONE DH9 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
RACE FACE ATLAS 35 DIRECT MOUNT
Saddle
ENTITY ASSAULT
Seatpost
ENTITY, 30.9MM
Handlebar
RACE FACE ATLAS 35
Brakes
Shimano Saint BR-M820 438 (BL-M820) g Hydraulic disc brake 4 piston
Average weight (g)
438 (BL-M820)
Brake hose color kit
Black
Brake hose color kit
White
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M820
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
SM-RT86
Drivetrain
Crankset
E13 LG1+ 36T BOOST, 165MM
Shifter
SRAM X01 DH 7-SPEED
Bottom bracket
E13 BB92 PRESSFIT
Cassette
SRAM X01 DH
Rear derailleur
SRAM X01 DH 10s, 7s
Cable pull ratio
Exact actuation
Cage
Medium, Short
Cage material
Aluminum
Color
Black, Red
Max tooth
26, 28
Model
RD-X0-1DH-A2
Name
X01 DH X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
10s, 7s
Chain
KMC X11
Frameset
Frame
NAILD R3ACT 2PLAY SUSPENSION ACX, 218MM TRAVEL, SUPER BOOST 157MM O.L.D.
Front suspension
Fox 40 Float Factory
Rear suspension
Fox Float X2 Factory
Wheels
Rims
E13 LG1+
Tires
SCHWALBE MAGIC MARY 27.5”X2.50”

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
400,0
400,0
400,0
b
Seat tube angle
73,4º
73,4º
73,1º
73,1º
c
Top tube length
577,38
602,38
633,51
658,51
d
Head tube length
97,52
97,52
108,75
108,75
e
Head tube angle
63,0º
63,0º
63,0º
63,0º
f
Rake
52,0
52,0
52,0
52,0
g
Trail
123,0
123,0
123,0
123,0
h
Wheelbase
1198,76
1223,75
1253,85
1278,85
i
Chainstay length
440,46
440,46
440,46
440,46
j
Bottom bracket drop
6,25
6,25
6,25
6,25
k
Stack height
595,0
595,0
605,0
605,0
l
Reach
400,0
425,0
450,0
475,0
m
Standover height
703,05
703,05
703,05
703,05
x
Bottom bracket height
350,75
350,75
350,75
350,75
y
Front center
758,0
783,0
813,0
838,0
