BikeWise

Polygon Xquarone EX 8 2019

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,5 kg
Front travel
180mm
Rear travel
180mm

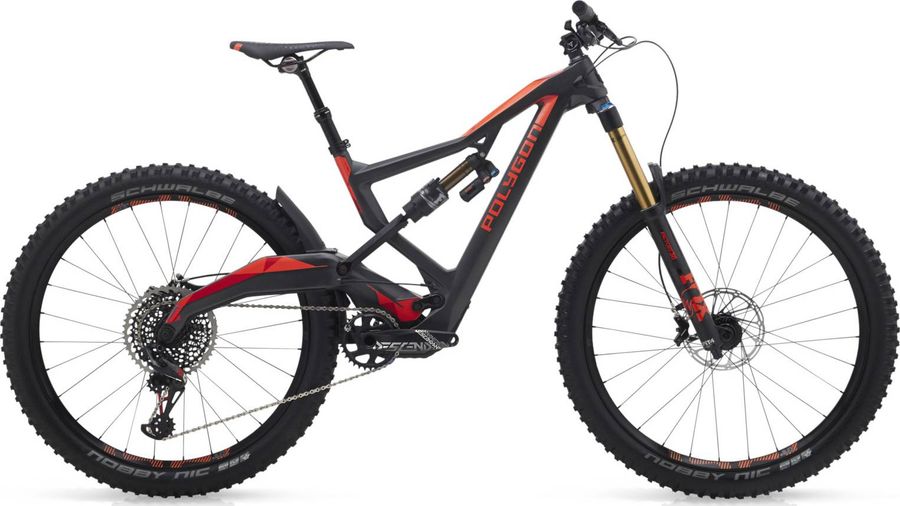

Polygon Xquarone EX 8 2019

About the Polygon Xquarone EX 8 2019

The Polygon Xquarone EX 8 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 13,5 kg.

Features

The Polygon Xquarone EX 8 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Race Face Turbine R, alloy, 50mm length, 0 rise
Saddle
Entity Assault with Cr-Mo rails
Headset
FSA Orbit, C-40/48-CF-ACB
Seatpost
KS LEV Sio, dropper, 150mm travel
Handlebar
Race Face Next R, 35mm bore, carbon, 780mm width, 20mm rise
Brake lever
SRAM Guide RSC
Brakes
SRAM Guide RSC Hydraulic 377 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Silver
Model
DB-GDE-RSC-B1
Name
Guide RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
377
Drivetrain
Crankset
Truvativ Descendant Eagle, 12-speed, Boost, 175mm
Shifter
SRAM X01 Eagle, 12-speed
Bottom bracket
SRAM DUB, pressfit
Cassette
SRAM XG-1295 X01 Eagle
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 36 Float Factory
Wheels
Rims
e*thirteen TRS+ Boost wheelset
Tires
Schwalbe Nobby Nic, 27.5"x2.6"
Spokes
e*thirteen TRS+ Boost wheelset
Rear hub
e*thirteen TRS+ Boost wheelset
Front hub
e*thirteen TRS+ Boost wheelset

Geometry

Size MD LG XL
a
Seat tube length
420,0
465,0
485,0
b
Seat tube angle
73,5º
73,5º
73,5º
c
Top tube length
623,0
643,0
668,0
d
Head tube length
90,0
105,0
125,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1182,4
1204,5
1222,2
i
Chainstay length
428,0
428,0
428,0
j
Bottom bracket drop
10,0
10,0
10,0
k
Stack height
591,0
604,7
622,9
l
Reach
448,8
464,8
474,4
m
Standover height
730,6
762,0
779,0
x
Bottom bracket height
345,0
345,0
345,0
y
Front center
-
-
-
