Polygon XQUARONE EX7 SHIMANO SLX 2020

MTB Enduro
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,5 kg
Front travel
180mm
Rear travel
180mm

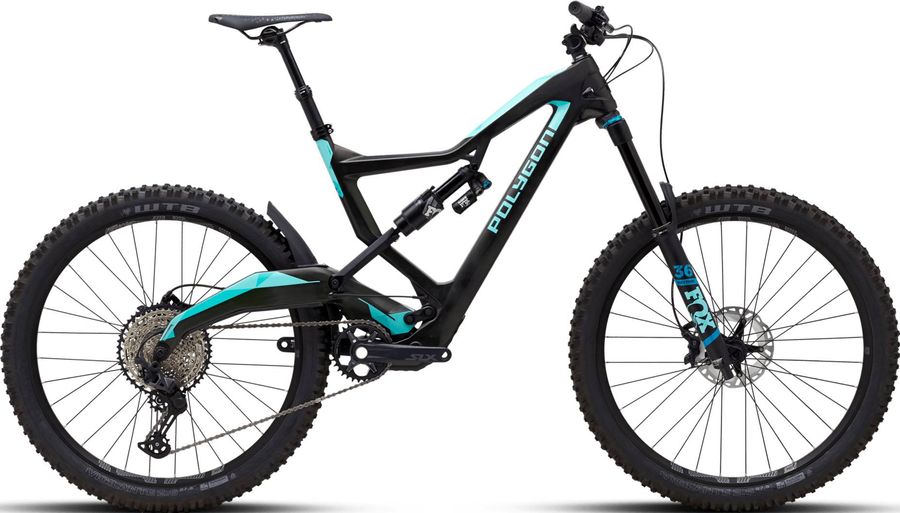

Polygon XQUARONE EX7 SHIMANO SLX 2020

About the Polygon XQUARONE EX7 SHIMANO SLX 2020

The Polygon XQUARONE EX7 SHIMANO SLX 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 13,5 kg.

Features

The Polygon XQUARONE EX7 SHIMANO SLX 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
RACEFAE AEFFECT R35, ALLOY E:50MM R:0DEG BB:35MM
Saddle
ENTITY XTENT
Seatpost
KS LEV ISO, T:125MM (M), 150MM (L-XL), 30.9MM, OFFSET:18MM,
Handlebar
RACEFACE AEFFECT R35, ALLOY W:780MM R:20MM BB:35MM
Brakes
Shimano SLX BR-M7120 444 (BL-M7100) g Hydraulic disc brake 4 piston
Average weight (g)
444 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D02S Metal (w/o fin)
Pad option
N04C Metal (w/ fin)
Pad standard
D03S Resin (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Chain
SHIMANO 12SP
Crankset
SHIMANO SLX FC-M7100 12-SPEED, 32T, 175MM
Shifter
SHIMANO SLX SL-M7100 12-SPEED
Bottom bracket
SHIMANO BB PRESSFIT
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
NAILD R3ACT 2PLAY SUSPENSION ACX, 180MM TRAVEL, BOOST
Front suspension
Fox 36 Rhythm
Rear suspension
Fox Float X2 Performance
Wheels
Rims
E13 TRS W/ SHIMANO SLX HUB
Tires
WTB VIGILANTE 27.5”X2.6

Geometry

Size MD LG XL
a
Seat tube length
420,0
465,0
485,0
b
Seat tube angle
73,5º
73,5º
73,5º
c
Top tube length
623,0
643,0
668,0
d
Head tube length
90,0
105,0
125,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
44,0
44,0
44,0
g
Trail
110,0
110,0
110,0
h
Wheelbase
1182,4
1204,5
1222,2
i
Chainstay length
428,0
428,0
428,0
j
Bottom bracket drop
3,0
3,0
3,0
k
Stack height
591,0
604,7
622,9
l
Reach
448,8
464,8
474,4
m
Standover height
730,6
762,0
779,0
x
Bottom bracket height
354,0
354,0
354,0
y
Front center
754,0
777,0
794,0
