Polygon XQUARONE EX7 SRAM GX 2020

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,5 kg
Front travel
180mm
Rear travel
180mm

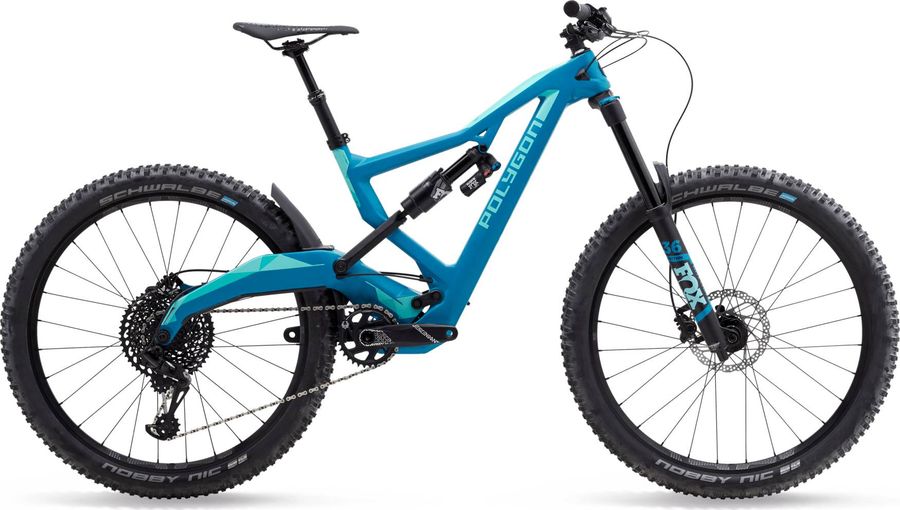

Polygon XQUARONE EX7 SRAM GX 2020

About the Polygon XQUARONE EX7 SRAM GX 2020

The Polygon XQUARONE EX7 SRAM GX 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 13,5 kg.

Features

The Polygon XQUARONE EX7 SRAM GX 2020 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
RACE AEFFECT R 35, E:50MM R:0DEGREE
Saddle
ENTITY ASSAULT W/ CRMO RAIL
Seatpost
KS LEV SIO
Handlebar
RACE AEFFECT R 35, W:780MM R:20MM
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
TRUVATIV DESCENDANT EAGLE 12-SPEED 32T NARROW-WIDE BOOST, 175MM
Shifter
SRAM GX EAGLE 12-SPEED
Bottom bracket
SRAM DUB PRESSFIT 92
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
KMC X12
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
NAILD R3ACT 2PLAY SUSPENSION ACX, 180MM TRAVEL, BOOST
Front suspension
Fox 36 Rhythm
Rear suspension
Fox Float X2 Performance
Wheels
Rims
E13 TRS BOOST
Tires
SCHWALBE NOBBY NIC, 27.5”X2.60”

Geometry

Size MD LG XL
a
Seat tube length
420,0
465,0
485,0
b
Seat tube angle
73,5º
73,5º
73,5º
c
Top tube length
623,0
643,0
668,0
d
Head tube length
90,0
105,0
125,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
44,0
44,0
44,0
g
Trail
110,0
110,0
110,0
h
Wheelbase
1182,4
1204,5
1222,2
i
Chainstay length
428,0
428,0
428,0
j
Bottom bracket drop
3,0
3,0
3,0
k
Stack height
591,0
604,7
622,9
l
Reach
448,8
464,8
474,4
m
Standover height
730,6
762,0
779,0
x
Bottom bracket height
354,0
354,0
354,0
y
Front center
754,0
777,0
794,0
