Polygon XTRADA 5 2020

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
13,8 kg
Front travel
120mm
Polygon XTRADA 5 2020

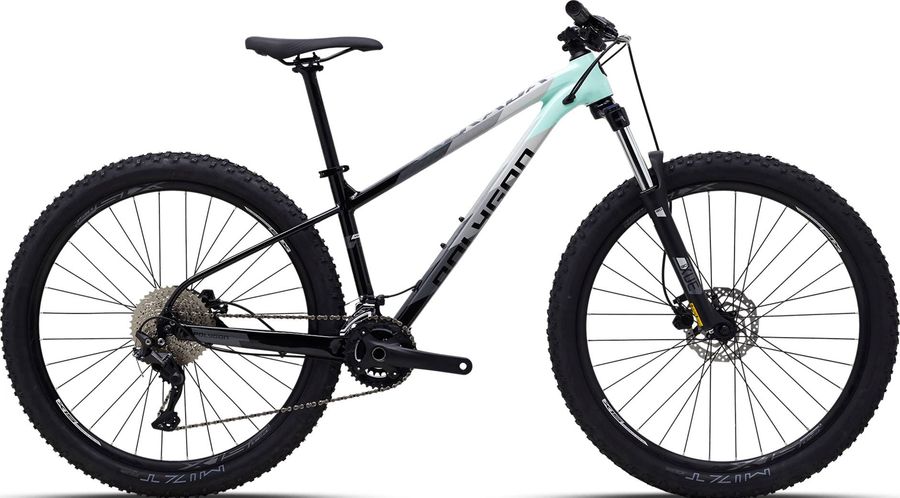

About the Polygon XTRADA 5 2020

The Polygon XTRADA 5 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 20 gears (2x10). Its features include hydraulic disc brakes. The bike weighs approximately 13,8 kg.

Features

The Polygon XTRADA 5 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
ENTITY SPORT, ALLOY E:45MM BB:31.8MM
Saddle
ENTITY VOID
Seatpost
ENTITY SPORT, 15MM OFFSET, 27.2MMX350MM
Handlebar
ENTITY SPORT, ALLOY W:760MM R:12MM BB:31.8MM
Brakes
Tektro HD-M275
Drivetrain
Crankset
PROWHEEL, VORTEX 551-TT-B 36-22T 10-SPEED
Shifter
SHIMANO DEORE SL-M5100/SL-M4100 2X10-SPEED
Bottom bracket
BSA THREADED
Chain
KMC X10
Rear derailleur
Shimano RD-M4120-SGS SGS 11/10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M4120-SGS
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
11/10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Cassette
Shimano Deore CS-M4100-10 HG
Combination names
11-42T
11-46T
Compatible chain
HG-X 10-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M4100-10
Steel gear finish
Plated
Steel gear pieces
10
Type
HG
Frameset
Frame
ALX XC 27.5” & 29”
Front suspension
SR Suntour XCM HLO
Wheels
Rims
DOUBLE WALL ALLOY RIMS W/ ALLOY QR BOOST HUBS
Tires
MIZT SA-281 27.5”X2.25” / 29”X2.25”

Geometry

Size SM MD MD LG LG XL
a
Seat tube length
385,0
425,0
425,0
460,0
460,0
500,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
75,0º
75,0º
c
Top tube length
571,0
592,0
600,0
614,0
621,0
642,0
d
Head tube length
95,0
100,0
95,0
105,0
100,0
105,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
67,0º
67,0º
f
Rake
37,0
37,0
44,0
37,0
44,0
44,0
g
Trail
111,0
111,0
111,0
111,0
111,0
111,0
h
Wheelbase
1108,0
1130,0
1149,0
1152,0
1171,0
1193,0
i
Chainstay length
427,0
427,0
437,0
427,0
437,0
437,0
j
Bottom bracket drop
45,0
45,0
65,0
45,0
65,0
65,0
k
Stack height
595,8
601,3
631,3
605,0
635,2
639,8
l
Reach
412,0
432,0
432,0
452,0
452,0
472,0
m
Standover height
665,0
699,0
695,0
728,0
717,0
753,0
x
Bottom bracket height
310,0
310,0
309,0
310,0
309,0
309,0
y
Front center
685,0
707,0
720,0
729,0
742,0
764,0
