BikeWise

Polygon XTRADA 6 1X10 2020

MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Front travel
100mm

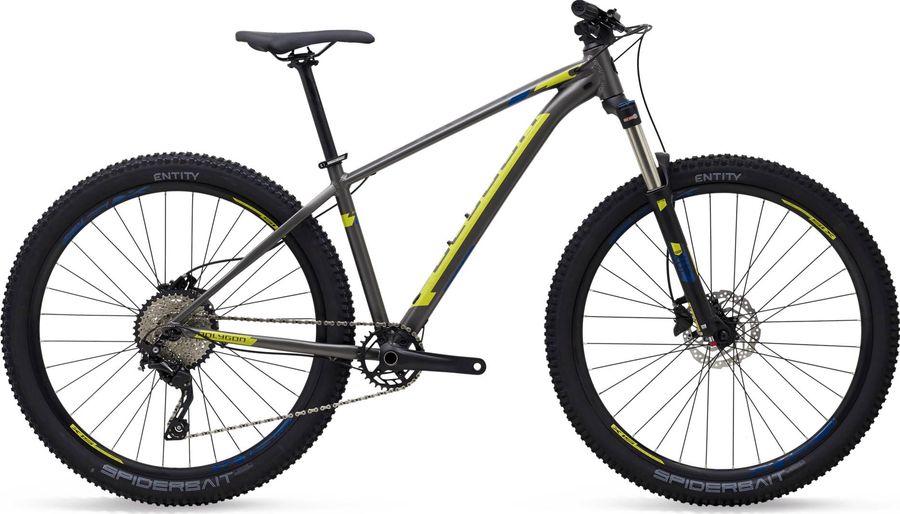

Polygon XTRADA 6 1X10 2020

About the Polygon XTRADA 6 1X10 2020

The Polygon XTRADA 6 1X10 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes.

Features

The Polygon XTRADA 6 1X10 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
ENTITY XPERT, ALLOY, E:35MM BB:31.8MM
Saddle
ENTITY VOID SADDLE
Seatpost
ENTITY XPERT, ALLOY, 27.2MMX350MM
Handlebar
ENTITY XPERT, ALLOY, W:760MM R:12MM BB:31.8MM
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
ALLOY CRANKSET 32T
Shifter
SHIMANO DEORE M6000 1X10 SPEED
Bottom bracket
INCLUDE CRANKSET
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
ALX XC SPORT/ TRAIL 27.5” & 29”
Front suspension
SR Suntour XCR
Wheels
Rims
ALLOY WHEELSET W/ QR BOOST W/32H FRONT:QRx100mm REAR:BOOST QRx141mm
Tires
ENTITY SPIDERBAIT TIRE 27.5”X2.25” / 29”X2.25”

Geometry

Size SM MD MD LG LG XL
a
Seat tube length
406,0
456,0
431,0
506,0
470,0
516,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
593,0
613,0
617,0
629,0
632,0
648,0
d
Head tube length
100,0
100,0
100,0
105,0
105,0
105,0
e
Head tube angle
69,0º
69,0º
69,5º
69,0º
69,5º
69,5º
f
Rake
42,0
42,0
46,0
42,0
46,0
46,0
g
Trail
91,0
91,0
91,0
91,0
91,0
91,0
h
Wheelbase
1095,0
1115,0
1122,0
1131,0
1137,0
1154,0
i
Chainstay length
436,0
436,0
446,0
436,0
446,0
446,0
j
Bottom bracket drop
47,0
47,0
60,0
47,0
60,0
60,0
k
Stack height
616,0
616,0
630,0
621,0
630,0
635,0
l
Reach
406,0
426,0
426,0
441,0
441,0
456,0
m
Standover height
717,0
750,0
749,0
797,0
781,0
811,0
x
Bottom bracket height
299,0
299,0
316,0
299,0
316,0
316,0
y
Front center
663,0
683,0
683,0
699,0
698,0
715,0
