Polygon XTRADA 7 2021

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Front travel
120mm

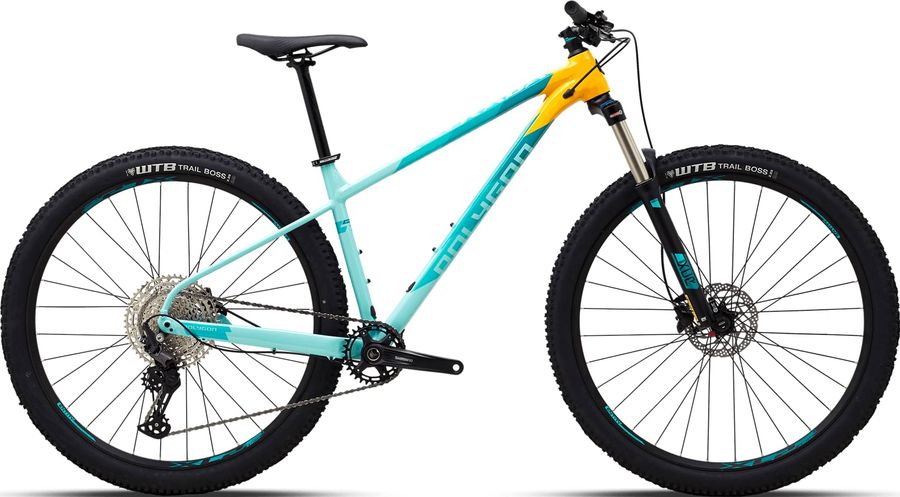

Polygon XTRADA 7 2021

About the Polygon XTRADA 7 2021

The Polygon XTRADA 7 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain. Its features include hydraulic disc brakes.

Features

The Polygon XTRADA 7 2021 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
ENTITY XPERT, ALLOY E:40MM (27.5” & 29”), BB:31.8MM
Saddle
ENTITY VOID
Seatpost
ENTITY XPERT, 15MM OFFSET, 27.2MMX350MM
Handlebar
ENTITY XPERT, ALLOY W:760MM R:12MM BB:31.8MM
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SHIMANOS FC-MT510-1 1X12 SPEED
Shifter
SHIMANO DEORE SL-M6100 12-SPEED
Bottom bracket
BSA THREADED
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Rear derailleur
Shimano Deore RD-M6100 SGS 12s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M6100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
KMC X12
Frameset
Frame
ALX XC 27.5” & 29”
Front suspension
SR Suntour XCR
Wheels
Rims
ENTITY XL2 W/ THRU AXLE HUBS
Tires
WTB TRAIL BOSS 27.5”X2.25” / 29”X2.25”

Geometry

Size SM MD MD LG LG XL
a
Seat tube length
385,0
425,0
425,0
460,0
460,0
500,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
75,0º
75,0º
c
Top tube length
571,0
592,0
600,0
614,0
621,0
642,0
d
Head tube length
95,0
100,0
95,0
105,0
100,0
105,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
67,0º
67,0º
f
Rake
37,0
37,0
44,0
37,0
44,0
44,0
g
Trail
111,0
111,0
111,0
111,0
111,0
111,0
h
Wheelbase
1108,0
1130,0
1149,0
1152,0
1171,0
1193,0
i
Chainstay length
427,0
427,0
437,0
427,0
437,0
437,0
j
Bottom bracket drop
45,0
45,0
65,0
45,0
65,0
65,0
k
Stack height
595,8
601,3
631,3
605,0
635,2
639,8
l
Reach
412,0
432,0
432,0
452,0
452,0
472,0
m
Standover height
665,0
699,0
695,0
728,0
717,0
753,0
x
Bottom bracket height
310,0
310,0
309,0
310,0
309,0
309,0
y
Front center
685,0
707,0
720,0
729,0
742,0
764,0
