Radon Cragger 8.0 2019

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
12,3 kg
Front travel
130mm

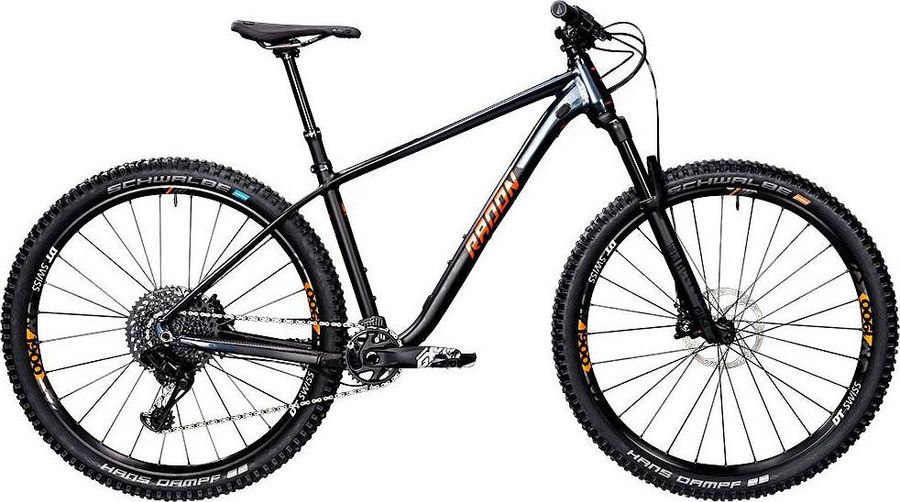

Radon Cragger 8.0 2019

About the Radon Cragger 8.0 2019

The Radon Cragger 8.0 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 12,3 kg.

Features

The Radon Cragger 8.0 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater
Components
Steam
Race Face Turbine R 35, 40mm on S/M, 50mm on L
Saddle
SDG FLY MTN 2, CrMo
Headset
FSA, IS41/IS52
Seatpost
SDG Tellis, 125mm on S, 150mm on M/L
Handlebar
Race Face Turbine R, 35mm diameter, 780mm, 20mm rise
Brake lever
Magura MT5
Brakes
Magura MT5
Drivetrain
Crankset
SRAM GX Eagle, DUB, 175mm
Shifter
SRAM GX Eagle, 12-speed, Shiftmix
Chain guide
MRP 1X
Bottom bracket
SRAM pressfit DUB MTB, 92mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
DT Swiss M1900 Spline wheelset, 30mm inner width
Tires
Front: Schwalbe Hans Dampf, Addix-Soft, TLE, Kevlar, 29"x2.35", Rear: Schwalbe Hans Dampf, Addix-Soft, TLE, Kevlar, 29"x2.35"
Spokes
DT Swiss M1900 Spline wheelset
Rear hub
DT Swiss M1900 Spline wheelset
Front hub
DT Swiss M1900 Spline wheelset

Geometry

Size SM MD LG
a
Seat tube length
391,0
426,0
461,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
584,0
608,0
637,0
d
Head tube length
110,0
120,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
f
Rake
45,0
43,0
47,0
g
Trail
125,0
127,0
123,0
h
Wheelbase
1152,0
1177,0
1209,0
i
Chainstay length
424,0
424,0
424,0
j
Bottom bracket drop
50,0
50,0
50,0
k
Stack height
611,0
620,0
625,0
l
Reach
407,0
429,0
455,0
m
Standover height
748,0
770,6
797,0
x
Bottom bracket height
324,0
324,0
324,0
y
Front center
733,0
758,0
789,0
