Radon Jab 10.0 2019

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,2 kg
Front travel
170mm
Rear travel
160mm

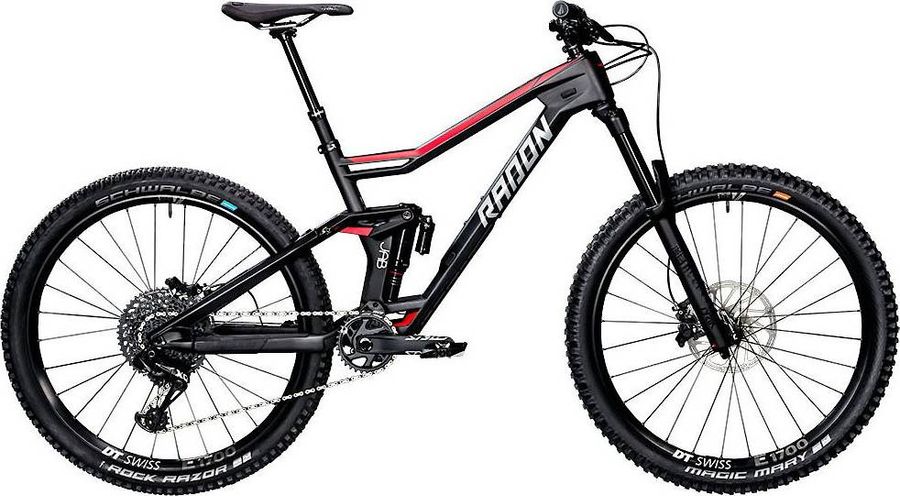

Radon Jab 10.0 2019

About the Radon Jab 10.0 2019

The Radon Jab 10.0 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 13,2 kg.

Features

The Radon Jab 10.0 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater
Components
Steam
Race Face Turbine R 35, 40mm on 16"/18"/20", 50mm on 22"
Saddle
SDG FLY MTN 2, CrMo
Headset
Acros AzX ZS44/ZS56
Seatpost
SDG Tellis, 125mm on 16", 150mm on 18"/20"/22"
Handlebar
Race Face Turbine R, 35mm diameter, 800mm, 35mm rise
Brake lever
SRAM Code R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM Stylo Eagle 7k, Boost, DUB, 170mm
Shifter
SRAM GX Eagle, 12-speed, Matchmaker
Chain guide
MRP 1X
Bottom bracket
SRAM pressfit DUB MTB, 92mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Front suspension
RockShox Lyrik RC2 DebonAir
Color
BoXXer Red, Diffusion Black, Gloss Black
Damper type
Charger 2 RC2
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-RC2-C1
Name
Lyrik RC2
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe RT3
Wheels
Rims
DT Swiss E1700 Spline wheelset, 30mm inner width
Tires
Front: Schwalbe Magic Mary, Addix-Soft, TLE, Kevlar, 27.5"x2.35", Rear: Schwalbe Rock Razor, Addix-Speedgrip, TLE, Kevlar, 27.5"x2.35"
Spokes
DT Swiss E1700 Spline wheelset
Rear hub
DT Swiss E1700 Spline wheelset
Front hub
DT Swiss E1700 Spline wheelset

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
395,0
425,0
455,0
490,0
b
Seat tube angle
74,1º
74,1º
74,1º
74,1º
c
Top tube length
571,0
593,0
615,0
637,0
d
Head tube length
100,0
110,0
120,0
135,0
e
Head tube angle
64,7º
64,7º
64,7º
64,7º
f
Rake
28,0
27,0
27,0
28,0
g
Trail
137,0
138,0
138,0
137,0
h
Wheelbase
1165,0
1188,0
1210,0
1233,0
i
Chainstay length
423,0
423,0
423,0
423,0
j
Bottom bracket drop
-10,0
-10,0
-10,0
-10,0
k
Stack height
582,0
592,0
601,0
614,0
l
Reach
424,0
443,0
461,0
477,0
m
Standover height
722,0
740,0
755,0
776,0
x
Bottom bracket height
365,0
365,0
365,0
365,0
y
Front center
742,0
765,0
787,0
810,0
