Radon JAB 10.0 2020

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,5 kg
Front travel
170mm
Rear travel
160mm

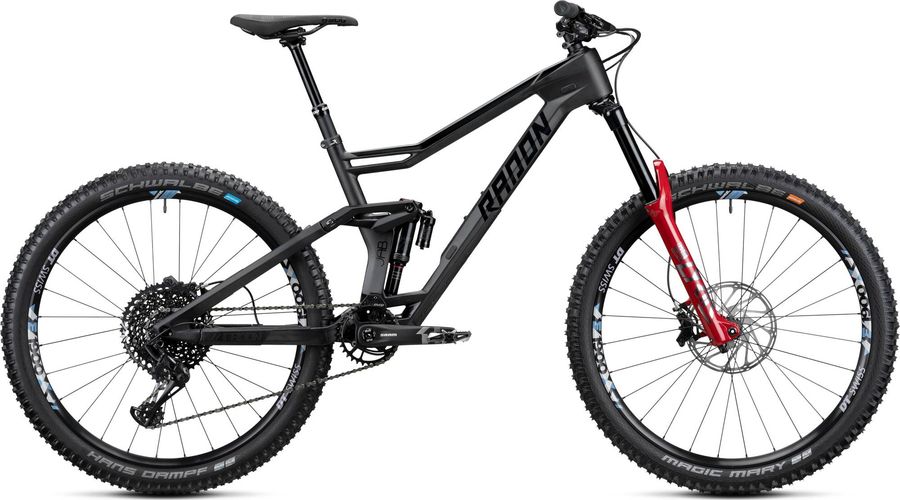

Radon JAB 10.0 2020

About the Radon JAB 10.0 2020

The Radon JAB 10.0 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,5 kg.

Features

The Radon JAB 10.0 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater
Pedals
not included
Components
Steam
Race Face Turbine R, 35mm; 16"/40mm, 18"/40mm, 20"/50mm, 22"/50mm
Saddle
SDG Radar, CroMo
Headset
Acros AZX, ZS44/ZS56
Seatpost
SDG Tellis, 31.6mm; 16"/125mm, 18"/150mm, 20"/150mm, 22"/150mm
Handlebar
Race Face Turbine R, 35 x 800mm, 35mm rise
Brake lever
SRAM Code R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM X1 1000 Eagle, DUB, Boost, 32T, 170mm
Shifter
SRAM GX Eagle, Matchmaker X
Chain guide
MRP 1X, ISCG05
Bottom bracket
SRAM DUB, PressFit, 92mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
JAB; Weight: 2.280 g, Material: Full Carbon mainframe and rear triangle, Max. width tire: 2.4", Flip Chip for geometry adjusting
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Front suspension
RockShox Lyrik Ultimate RC2
Wheels
Rims
DT Swiss E1900 Spline 27.5, 30mm, 110/148mm
Tires
Schwalbe Magic Mary, Addix-Soft, TLE, Kevlar, 27.5" x 2.35"
Spokes
DT Swiss E1900 Spline wheelset
Rear hub
DT Swiss E1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear
Front hub
DT Swiss E1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size 16" High 18" High 20" High 22" High
a
Seat tube length
395,0
425,0
455,0
490,0
b
Seat tube angle
74,1º
74,1º
74,1º
74,1º
c
Top tube length
571,0
593,0
615,0
637,0
d
Head tube length
100,0
110,0
120,0
135,0
e
Head tube angle
64,7º
64,7º
64,7º
64,7º
f
Rake
36,0
36,0
36,0
36,0
g
Trail
128,0
128,0
128,0
128,0
h
Wheelbase
1165,0
1188,0
1210,0
1233,0
i
Chainstay length
423,0
423,0
423,0
423,0
j
Bottom bracket drop
10,0
10,0
10,0
10,0
k
Stack height
582,0
592,0
601,0
614,0
l
Reach
424,0
443,0
461,0
477,0
m
Standover height
722,0
740,0
755,0
776,0
x
Bottom bracket height
345,0
345,0
345,0
345,0
y
Front center
742,0
765,0
787,0
810,0
