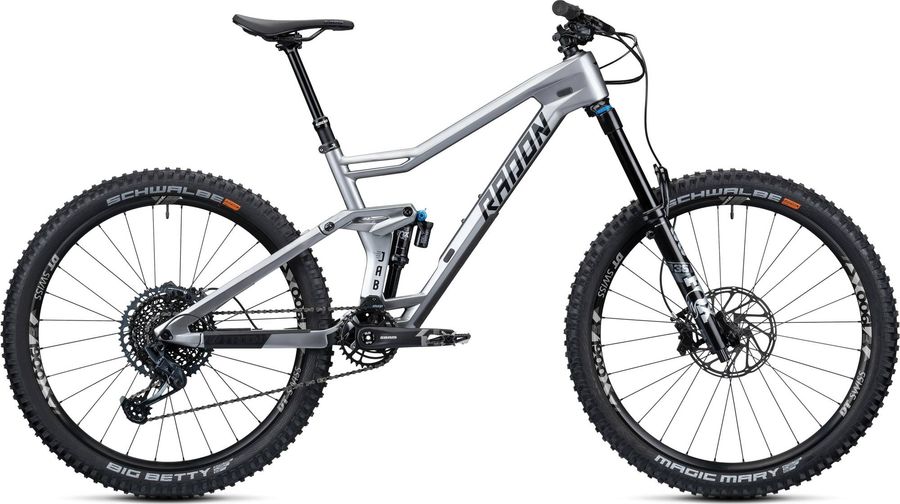

Radon JAB 10.0 2021

MTB Enduro

Groupset

SRAM GX Eagle

Frame material

Carbon

Wheel size

27,5"

Suspension type

Full suspension

Weight

14,3 kg

Front travel

170mm

Rear travel

160mm

About the Radon JAB 10.0 2021

The Radon JAB 10.0 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,3 kg.

Features

The Radon JAB 10.0 2021 has 4 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	SDG Thrice
Pedals	not included

Components
Steam	Race Face Turbine R, 35mm; 16": 40mm, 18": 40mm, 20": 50mm, 22": 50mm
Saddle	SDG Bel Air V3, Lux alloy
Headset	Acros AZX, ZS44/ZS56
Seatpost	SDG Tellis, 31.6mm; 16": 125mm, 18": 150mm, 20": 150mm, 22": 150mm
Handlebar	Race Face Turbine R, 35 x 780mm, 35mm rise
Brakes	SRAM Code R Hydraulic
Application MTB Blade material Aluminum - Forged Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Dark Grey Paint, Diffusion Black Model DB-CODE-R-B1 Name Code R Orientation Front, Rear Pad type disc Steel-backed metal sintered, Steel-backed organic

Drivetrain
Crankset	SRAM X1 1000 Eagle, DUB, 32T, Boost, 170mm
Shifter	SRAM GX Eagle, Matchmaker X
Chain guide	MRP 1X, ISCG05
Chain	SRAM GX Eagle 244 g
Chain connector PowerLock Chain length links 126 links Color inner link Black Color outer link Silver Compat speed 12s-Eagle Inner link finish Black Oxide Model CN-EAGL-GX-A1 Name GX Eagle Chain Outer link finish Nickel Pin variant Solid Pin Weight based on 114 links Weight 244
Cassette	SRAM XG-1275 Eagle 12s
Cog finish cassete Black Cog sizes 10-52t:10,12,14,16,18,21,24,28,32,36,42,52 Gearing 10-52t Model CS-XG-1275-B1 Name XG-1275 Eagle Cassette Speed 12s Technology cassete XG
Rear derailleur	SRAM GX Eagle 12s
Cable pull ratio X-actuation Cage Long Cage material Aluminum Color Lunar Max tooth 52 Model RD-GX-1-B2 Name GX Eagle Rear Derailleur Pulley bearings material Steel Speed 12s

Frameset
Frame	JAB; Weight: 2.280 g, Material: Full Carbon mainframe and rear triangle, Max. width tire: 2.4", Flip Chip for geometry adjusting, Hanger: #10240
Front suspension	Fox 36 Performance Elite
