BikeWise

Radon Jab 9.0 2018

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,7 kg
Front travel
160mm
Rear travel
160mm

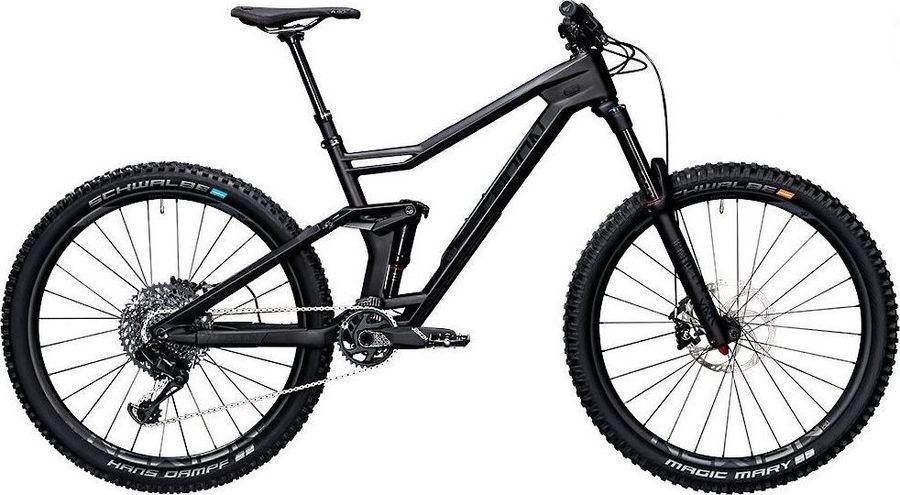

Radon Jab 9.0 2018

About the Radon Jab 9.0 2018

The Radon Jab 9.0 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,7 kg.

Features

The Radon Jab 9.0 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater
Components
Steam
Race Face Turbine Basic R, 35mm clamp, 40mm length
Saddle
SDG Fly Mtn 2, CrMo rails
Headset
Acros AZX, ZS44/ZS56
Seatpost
SDG dropper, 120mm travel (16"), 150mm travel (18", 20")
Handlebar
Race Face Turbine R, 35mm clamp, 780mm width, 20mm rise
Brake lever
Magura MT5
Brakes
Magura MT5
Drivetrain
Crankset
SRAM Descendant Eagle 6k, 170mm length
Shifter
SRAM GX Eagle, 12-speed, Shiftmix
Chain guide
e*thirteen TRS Race SL
Bottom bracket
SRAM GXP, PressFit 92
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon Fiber
Rear suspension
RockShox Deluxe RT3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L3, L4, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-RT3-B1
Name
Deluxe RT3
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Wheels
Rims
Newman Evolution SL A30
Tires
Front: Schwalbe Magic Mary, Addix-Soft, TLE, Kevlar, 27.5" x 2.35", Rear: Schwalbe Hans Dampf, Addix-Soft, TLE, Snake Skin, 27.5" x 2.35"
Spokes
Newman Evolution
Rear hub
Newman Evolution, 110x15mm Boost front, 148x12mm Boost rear
Front hub
Newman Evolution, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size 16" 18" 20"
a
Seat tube length
395,0
425,0
455,0
b
Seat tube angle
74,6º
74,6º
74,6º
c
Top tube length
571,0
593,0
615,0
d
Head tube length
100,0
110,0
120,0
e
Head tube angle
65,2º
65,2º
65,2º
f
Rake
44,0
43,0
43,0
g
Trail
116,0
117,0
117,0
h
Wheelbase
1165,0
1188,0
1210,0
i
Chainstay length
423,0
423,0
423,0
j
Bottom bracket drop
14,0
14,0
14,0
k
Stack height
582,0
592,0
601,0
l
Reach
424,0
443,0
461,0
m
Standover height
722,35
739,5
755,46
x
Bottom bracket height
341,0
341,0
341,0
y
Front center
742,0
765,0
787,0
