BikeWise

Radon JAB 9.0 2020

MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,5 kg
Front travel
170mm
Rear travel
160mm

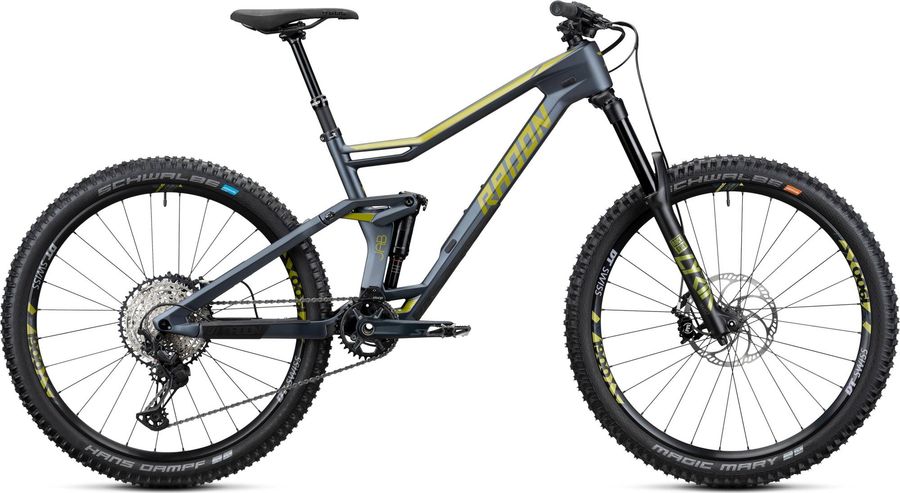

Radon JAB 9.0 2020

About the Radon JAB 9.0 2020

The Radon JAB 9.0 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,5 kg.

Features

The Radon JAB 9.0 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater
Components
Steam
Race Face Æffect R, 35mm; 16"/40mm, 18"/40mm, 20"/50mm, 22"/50mm
Saddle
SDG Radar
Headset
Acros AZX, ZS44/ZS56
Seatpost
SDG Tellis, 31.6mm; 16"/125mm, 18"/150mm, 20"/150mm, 22"/150mm
Handlebar
Race Face Æffect R, 35 x 780mm, 20mm rise
Brake lever
Magura MT5
Brakes
Magura MT5
Drivetrain
Crankset
Shimano SLX FC-M7100, Boost, 32T, 170mm
Shifter
Shimano SLX SL-M7100-R
Chain guide
MRP 1X, ISCG05
Bottom bracket
Shimano BB-MT500PA, press-fit, 92mm
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
JAB; Weight: 2.280 g, Material: Full Carbon mainframe and rear triangle, Max. width tire: 2.4", Flip Chip for geometry adjusting
Front suspension
RockShox Lyrik Select DebonAir 1996 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-SEL-C2
Name
Lyrik Select
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, Maxle Stealth
Weight
1996
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
DT Swiss E1900 Spline 27.5, 30mm, 110/148mm
Tires
Schwalbe Magic Mary, Addix-Soft, TLE, Kevlar, 27.5" x 2.35"
Spokes
DT Swiss E1900 Spline wheelset
Rear hub
DT Swiss E1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear
Front hub
DT Swiss E1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size 16" High 18" High 20" High 22" High
a
Seat tube length
395,0
425,0
455,0
490,0
b
Seat tube angle
74,1º
74,1º
74,1º
74,1º
c
Top tube length
571,0
593,0
615,0
637,0
d
Head tube length
100,0
110,0
120,0
135,0
e
Head tube angle
64,7º
64,7º
64,7º
64,7º
f
Rake
36,0
36,0
36,0
36,0
g
Trail
128,0
128,0
128,0
128,0
h
Wheelbase
1165,0
1188,0
1210,0
1233,0
i
Chainstay length
423,0
423,0
423,0
423,0
j
Bottom bracket drop
10,0
10,0
10,0
10,0
k
Stack height
582,0
592,0
601,0
614,0
l
Reach
424,0
443,0
461,0
477,0
m
Standover height
722,0
740,0
755,0
776,0
x
Bottom bracket height
345,0
345,0
345,0
345,0
y
Front center
742,0
765,0
787,0
810,0
