Radon JAB 9.0 2021

MTB Enduro

Groupset

Shimano XT

Frame material

Carbon

Wheel size

27,5"

Suspension type

Full suspension

Weight

14,2 kg

Front travel

170mm

Rear travel

160mm

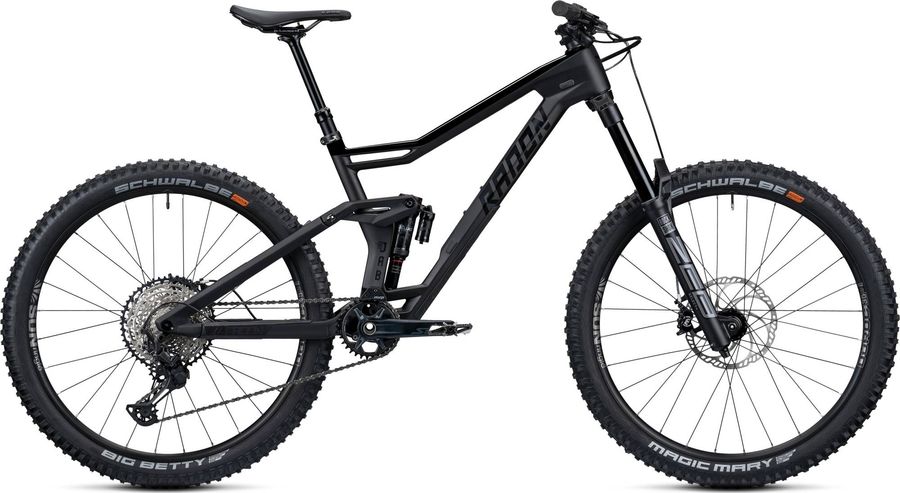

About the Radon JAB 9.0 2021

The Radon JAB 9.0 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,2 kg.

Features

The Radon JAB 9.0 2021 has 4 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	SDG Thrice
Pedals	not included

Components
Steam	Race Face Æffect R, 35mm; 16": 40mm, 18": 40mm, 20": 50mm, 22": 50mm
Saddle	SDG Bel Air V3
Headset	Acros AZX, ZS44/ZS56
Seatpost	Radon Competition Dropper, 31.6mm; 16": 125mm, 18": 150mm, 20": 150mm, 22": 150mm
Handlebar	Race Face Æffect R, 35 x 780mm, 20mm rise
Brakes	Magura MT5

Drivetrain
Crankset	Shimano SLX FC-M7100, Boost, 32T, 170mm
Shifter	Shimano SLX SL-M7100-IR, Shiftmix
Chain guide	MRP 1X, ISCG05
Rear derailleur	Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g) 284 B axle hollow B axle material Stainless steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG 12-speed Lower pulley max 51T Lower pulley min 51T Model RD-M8100-SGS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 13T pulley.tension_pulley_bearing Sealed bearing Pulley cage SGS Speeds 12 Upper pulley max 10T Upper pulley min 10T Total capacity 41T
Cassette	Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish Anodized Aluminum gear pieces 1 Aluminum spider arm finish Painted Aluminum spider arm pieces 1 Combination names 10-45T 10-51T Compatible chain HG 12-speed Lock ring finish Anodized Lock ring material Aluminum Model CS-M7100-12 Steel gear finish Plated Steel gear pieces 11 Type HYPERGLIDE+ Weights 10-45T: 513g 10-51T: 534g
Chain	Shimano CN-M7100 252 g
Average weight (g) 252 Chromizing treatment roller link pin Model CN-M7100 Pin link plate Gray Roller link plate SIL-TEC Type HG 12-speed

Frameset
Frame	JAB; Weight: 2.280 g, Material: Full Carbon mainframe and rear triangle, Max. width tire: 2.4", Flip Chip for geometry adjusting, Hanger: #10240
Front suspension	RockShox ZEB Select+ DebonAir, Dual Position Air 2265 g
Color Diffusion Black, Gloss Black Damper type Charger 2.1 RC fork offset 38mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29") Max tire width (mm) 81 Maximum rotor size 220mm Minimum rotor size 200mm Model FS-ZEB-SELP-A1 Name ZEB Select+ Spring DebonAir, Dual Position Air Travel (mm) 150mm, 160mm, 170mm, 180mm, 190mm Upper tube type 38mm aluminum Weight based on 29" Maxle Stealth 190mm Travel 1.5" Taper Steerer Weight 2265 Wheel size 27.5", 29"
