Radon Jab 9.0 MS 2019

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,15 kg
Front travel
160mm
Rear travel
160mm

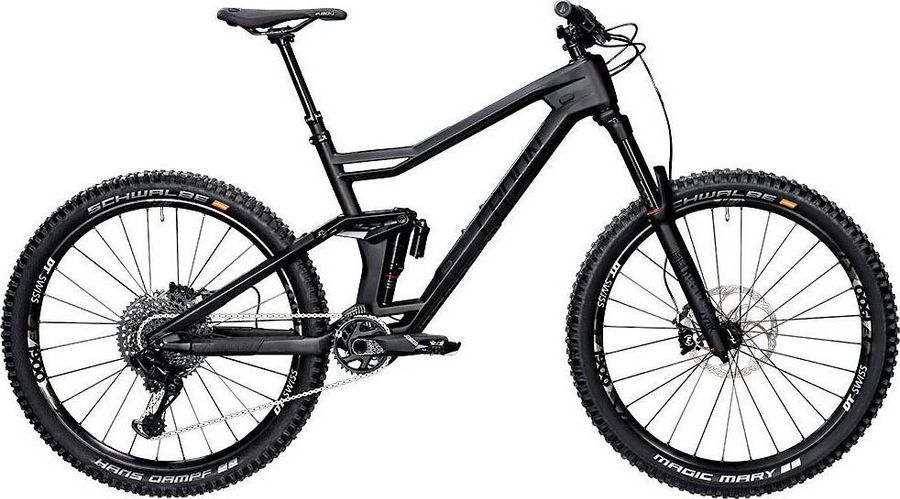

Radon Jab 9.0 MS 2019

About the Radon Jab 9.0 MS 2019

The Radon Jab 9.0 MS 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 13,15 kg.

Features

The Radon Jab 9.0 MS 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater
Components
Steam
Race Face Turbine R 35, 40mm
Saddle
SDG FLY MTN 2, CrMo
Headset
Acros AzX ZS44/ZS56
Seatpost
SDG Tellis, 150mm
Handlebar
Race Face Turbine R, 35mm diameter, 780mm, 20mm rise
Brake lever
Magura MT5
Brakes
Magura MT5
Drivetrain
Crankset
SRAM Descendant Eagle 6k, 170mm, Boost
Shifter
SRAM GX Eagle, 12-speed, Shiftmix
Chain guide
e*thirteen TRS Race SL
Bottom bracket
SRAM GXP, pressfit, 92mm
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon Fiber
Front suspension
RockShox Lyrik RCT3 Dual Position Air, Solo Air 2005 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
42mm (27.5"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-LYRK-RCT3-A1
Name
Lyrik RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27/29 Solo Air, RCT3, 180mm travel
Weight
2005
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
RockShox Super Deluxe RC3
Wheels
Rims
DT Swiss E1900 Spline wheelset, 30mm inner width
Tires
Front: Schwalbe Magic Mary, Addix-Soft, TLE, Kevlar, 27.5"x2.35", Rear: Schwalbe Hans Dampf, Addix-Speedgrip, TLE, Kevlar, 27.5"x2.35"
Spokes
DT Swiss E1900 Spline wheelset
Rear hub
DT Swiss E1900 Spline wheelset
Front hub
DT Swiss E1900 Spline wheelset

Geometry

Size 18" 20"
a
Seat tube length
425,0
466,0
b
Seat tube angle
74,6º
74,6º
c
Top tube length
589,0
611,0
d
Head tube length
110,0
120,0
e
Head tube angle
65,2º
65,2º
f
Rake
32,0
32,0
g
Trail
129,0
129,0
h
Wheelbase
1184,0
1206,0
i
Chainstay length
418,77
418,77
j
Bottom bracket drop
-14,0
-14,0
k
Stack height
588,0
597,0
l
Reach
439,0
457,0
m
Standover height
735,5
751,46
x
Bottom bracket height
369,0
369,0
y
Front center
766,0
788,0
