Radon Jealous 8.0 2019

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
9,2 kg
Front travel
100mm

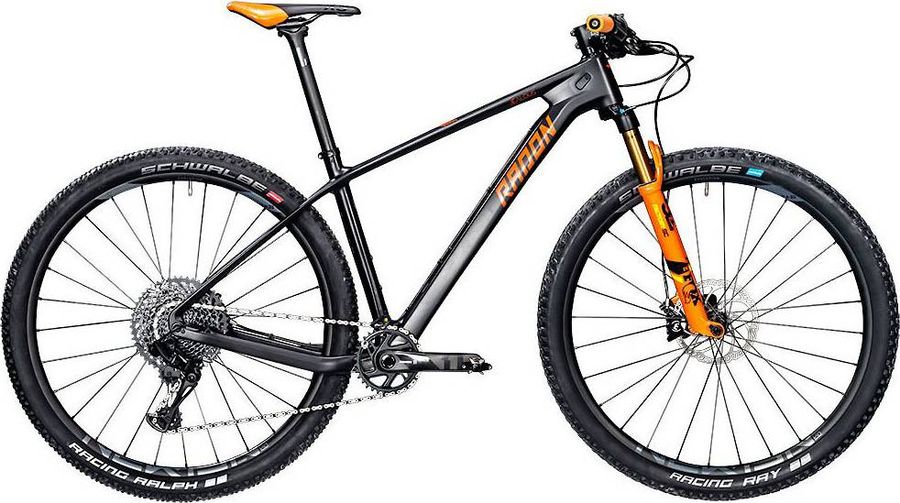

Radon Jealous 8.0 2019

About the Radon Jealous 8.0 2019

The Radon Jealous 8.0 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes. The bike weighs approximately 9,2 kg.

Features

The Radon Jealous 8.0 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Radon racing grips
Components
Steam
Newmen Evolution SL 4s, 60mm on 16", 70mm on 18"/20", 80mm on 22"
Saddle
Selle Italia X3
Headset
Acros AiX, IS41/IS52
Seatpost
Race Face Next SL 400 mm
Handlebar
Newmen Advanced, 31.8mm, 740mm
Brake lever
Magura MT Trail Custom
Brakes
Magura MT Trail Custom
Drivetrain
Crankset
SRAM X1 Eagle Carbon, Boost, DUB, 175mm
Shifter
SRAM GX Eagle, 12-speed, Shiftmix
Bottom bracket
SRAM pressfit DUB MTB, 92mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon Fiber
Front suspension
Fox 32 Float Factory
Wheels
Rims
Newmen Evolution SL X.A.25 wheelset, 25mm width
Tires
Front: Schwalbe Racing Ray, Addix-Speedgrip, TLE, Kevlar, 29"x2.25", Rear: Schwalbe Racing Ralph, Addix-Speed, TLE, Kevlar, 29"x2.25"
Spokes
Newmen Evolution SL X.A.25 wheelset
Rear hub
Newmen Evolution SL X.A.25 wheelset
Front hub
Newmen Evolution SL X.A.25 wheelset

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
400,0
445,0
490,0
535,0
b
Seat tube angle
73,6º
73,6º
73,6º
73,6º
c
Top tube length
576,0
602,0
624,0
646,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
69,6º
69,6º
69,6º
69,6º
f
Rake
48,0
52,0
52,0
51,0
g
Trail
88,0
84,0
84,0
85,0
h
Wheelbase
1076,0
1108,0
1131,0
1153,0
i
Chainstay length
432,5
432,5
432,5
432,5
j
Bottom bracket drop
68,0
68,0
68,0
68,0
k
Stack height
617,0
627,0
634,0
646,0
l
Reach
394,0
418,0
438,0
457,0
m
Standover height
739,0
770,0
798,0
826,0
x
Bottom bracket height
306,0
306,0
306,0
306,0
y
Front center
652,0
684,0
707,0
729,0
