Radon Jealous 9.0 2019
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
8,8 kg
Front travel
100mm

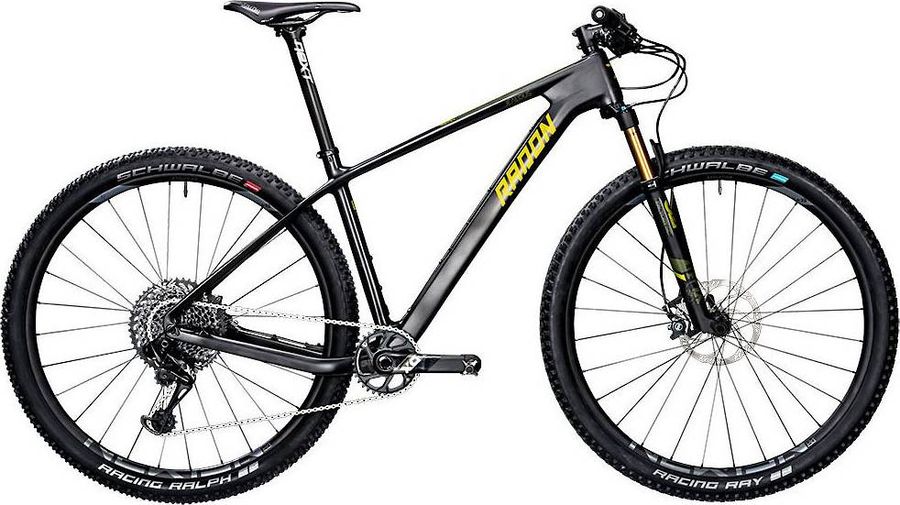

About the Radon Jealous 9.0 2019
The Radon Jealous 9.0 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes. The bike weighs approximately 8,8 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Radon racing grips
|
|---|
|
Steam
|
Newmen Evolution SL 4s, 60mm on 16", 70mm on 18"/20", 80mm on 22"
|
|---|---|
|
Saddle
|
Selle Italia SLR MG
|
|
Headset
|
Acros AiX, IS41/IS52
|
|
Seatpost
|
Race Face Next SL 400 mm
|
|
Handlebar
|
Newmen Advanced, 31.8mm, 740mm
|
|
Brake lever
|
Magura MT8
|
|
Brakes
|
Magura MT8
|
|
Crankset
|
SRAM X01 Eagle, Boost, DUB, 175mm
|
|---|---|
|
Shifter
|
SRAM X01 Eagle, 12-speed, Shiftmix
|
|
Bottom bracket
|
SRAM pressfit DUB MTB, 92mm
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Chain
|
SRAM X01 Eagle
239 g
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Front suspension
|
Fox 32 Float Factory
|
|
Rims
|
Newmen Evolution SL X.A.25 wheelset, 25mm width
|
|---|---|
|
Tires
|
Front: Schwalbe Racing Ray, Addix-Speedgrip, TLE, Kevlar, 29"x2.25", Rear: Schwalbe Racing Ralph, Addix-Speed, TLE, Kevlar, 29"x2.25"
|
|
Spokes
|
Newmen Evolution SL X.A.25 wheelset
|
|
Rear hub
|
Newmen Evolution SL X.A.25 wheelset
|
|
Front hub
|
Newmen Evolution SL X.A.25 wheelset
|
Geometry
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
445,0
|
490,0
|
535,0
|
|
b
Seat tube angle
|
73,6º
|
73,6º
|
73,6º
|
73,6º
|
|
c
Top tube length
|
576,0
|
602,0
|
624,0
|
646,0
|
|
d
Head tube length
|
100,0
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
69,6º
|
69,6º
|
69,6º
|
69,6º
|
|
f
Rake
|
48,0
|
52,0
|
52,0
|
51,0
|
|
g
Trail
|
88,0
|
84,0
|
84,0
|
85,0
|
|
h
Wheelbase
|
1076,0
|
1108,0
|
1131,0
|
1153,0
|
|
i
Chainstay length
|
432,5
|
432,5
|
432,5
|
432,5
|
|
j
Bottom bracket drop
|
68,0
|
68,0
|
68,0
|
68,0
|
|
k
Stack height
|
617,0
|
627,0
|
634,0
|
646,0
|
|
l
Reach
|
394,0
|
418,0
|
438,0
|
457,0
|
|
m
Standover height
|
739,0
|
770,0
|
798,0
|
826,0
|
|
x
Bottom bracket height
|
306,0
|
306,0
|
306,0
|
306,0
|
|
y
Front center
|
652,0
|
684,0
|
707,0
|
729,0
|
