BikeWise

Radon Jealous AL 10.0 2019

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
11,1 kg
Front travel
100mm

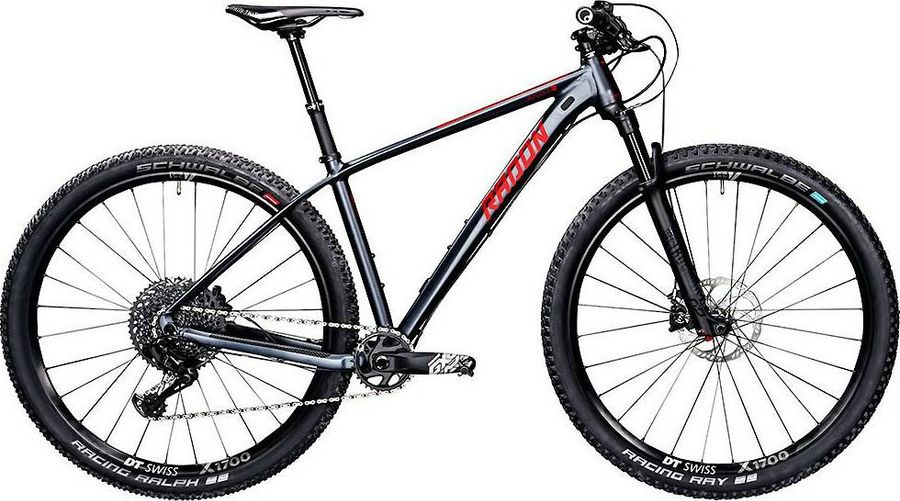

Radon Jealous AL 10.0 2019

About the Radon Jealous AL 10.0 2019

The Radon Jealous AL 10.0 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 11,1 kg.

Features

The Radon Jealous AL 10.0 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE10 slim
Components
Steam
Race Face Turbine Basic, 70mm on 18"/20", 80mm on 22"
Saddle
Selle Italia X3
Headset
FSA, IS41/IS52
Seatpost
SDG Tellis, 125mm on 18"/20", 150mm on 22"
Handlebar
Race Face Turbine, 31.8mm, 740 mm, 0.5" rise
Brake lever
Magura MT Trail Custom
Brakes
Magura MT Trail Custom
Drivetrain
Crankset
SRAM GX Eagle, DUB, 175mm
Shifter
SRAM GX Eagle, 12-speed, Shiftmix
Bottom bracket
SRAM pressfit DUB MTB, 92mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum
Front suspension
RockShox SID RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger 2
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-SID-RL-B2
Name
SID RL
Spring
Solo Air
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 27.5" B, 29", 29" B
Wheels
Rims
DT Swiss X1700 Spline Two wheelset, 25mm width
Tires
Front: Schwalbe Racing Ray, Addix-Speedgrip, TLE, Kevlar, 29"x2.25", Rear: Schwalbe Racing Ralph, Addix-Speed, TLE, Kevlar, 29"x2.25"
Spokes
DT Swiss X1700 Spline Two wheelset
Rear hub
DT Swiss X1700 Spline Two wheelset
Front hub
DT Swiss X1700 Spline Two wheelset

Geometry

Size 18" 20" 22"
a
Seat tube length
440,0
485,0
525,0
b
Seat tube angle
74,2º
74,2º
74,2º
c
Top tube length
606,0
628,0
650,0
d
Head tube length
110,0
115,0
130,0
e
Head tube angle
69,4º
69,4º
69,4º
f
Rake
51,0
51,0
52,0
g
Trail
86,0
86,0
85,0
h
Wheelbase
1120,0
1143,0
1166,0
i
Chainstay length
438,0
438,0
438,0
j
Bottom bracket drop
69,0
69,0
69,0
k
Stack height
621,0
635,0
648,0
l
Reach
434,0
452,0
469,0
m
Standover height
776,0
811,0
841,0
x
Bottom bracket height
305,0
305,0
305,0
y
Front center
691,0
714,0
737,0
