Radon JEALOUS AL 8.0 2020
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
12,1 kg
Front travel
100mm

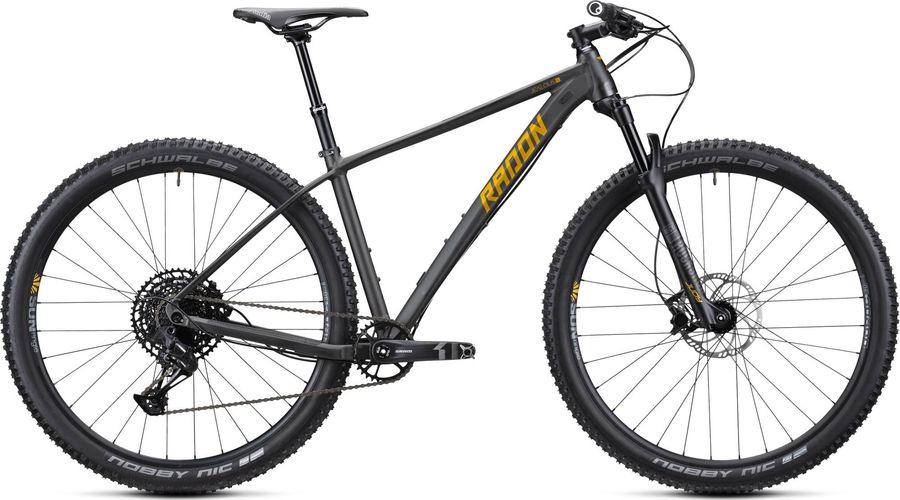

About the Radon JEALOUS AL 8.0 2020
The Radon JEALOUS AL 8.0 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,1 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Remote lockout
More info
Remote lockout
Specifications
|
Grip
|
Ergon GE10 Evo
|
|---|---|
|
Pedals
|
not included
|
|
Steam
|
LEVEL NINE Race, 31.8mm, 6°; 16"/60mm, 18"/75mm, 20"/75mm, 22"/90mm
|
|---|---|
|
Saddle
|
Selle Italia X1
|
|
Headset
|
FSA, IS41/IS52
|
|
Seatpost
|
SDG Tellis, 30.9mm; 16"/100mm Hub, 18"/125mm Hub, 20"/125mm Hub, 22"/150mm Hub
|
|
Handlebar
|
LEVEL NINE Race, 31.8 x 740mm, 15mm rise
|
|
Brake lever
|
Magura MT2
|
|
Brakes
|
Magura MT2
|
|
Crankset
|
SRAM X1 1000 Eagle, 32T, 175mm, Boost
|
|---|---|
|
Shifter
|
SRAM SX Eagle
|
|
Bottom bracket
|
SRAM DUB, PressFit, 92mm
|
|
Chain
|
SRAM SX Eagle
|
|
Cassette
|
SRAM PG-1210 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM SX Eagle
12s
|
|
|
|
|
Frame
|
JEALOUS AL
|
|---|---|
|
Front suspension
|
RockShox Judy Gold RL
Solo Air
|
|
|
|
|
Rims
|
SunRinglé Düroc 30, 26mm, 110/148mm
|
|---|---|
|
Tires
|
Schwalbe Nobby Nic, Addix Performance Line, Kevlar, 29" x 2.25"
|
|
Spokes
|
SUNringlé Duroc 30 wheelset
|
|
Rear hub
|
SUNringlé Duroc 30 wheelset, 110x15mm Boost front, 148x12mm Boost rear
|
|
Front hub
|
SUNringlé Duroc 30 wheelset, 110x15mm Boost front, 148x12mm Boost rear
|
Geometry
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
440,0
|
485,0
|
525,0
|
|
b
Seat tube angle
|
74,0º
|
74,2º
|
74,2º
|
74,2º
|
|
c
Top tube length
|
575,0
|
600,0
|
622,0
|
644,0
|
|
d
Head tube length
|
100,0
|
100,0
|
115,0
|
130,0
|
|
e
Head tube angle
|
68,9º
|
69,4º
|
69,4º
|
69,4º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
52,0
|
|
g
Trail
|
90,0
|
86,0
|
86,0
|
85,0
|
|
h
Wheelbase
|
1092,0
|
1114,0
|
1137,0
|
1160,0
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
69,0
|
69,0
|
69,0
|
69,0
|
|
k
Stack height
|
612,0
|
615,0
|
629,0
|
642,0
|
|
l
Reach
|
401,0
|
428,0
|
446,0
|
463,0
|
|
m
Standover height
|
749,0
|
770,0
|
805,0
|
835,0
|
|
x
Bottom bracket height
|
305,0
|
305,0
|
305,0
|
305,0
|
|
y
Front center
|
669,0
|
691,0
|
714,0
|
737,0
|
