Radon Jealous AL 8.0 29" 2019

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
11,5 kg
Front travel
100mm

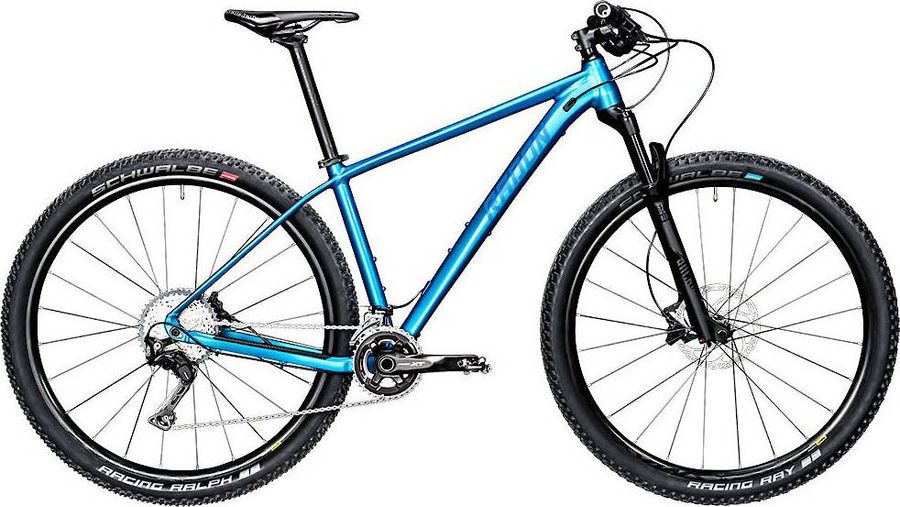

Radon Jealous AL 8.0 29" 2019

About the Radon Jealous AL 8.0 29" 2019

The Radon Jealous AL 8.0 29" 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes. The bike weighs approximately 11,5 kg.

Features

The Radon Jealous AL 8.0 29" 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE10 slim
Components
Steam
Level Nine Race, 6° rise, 75mm on 18"/20", 90mm on 22"
Saddle
Selle Italia X3
Headset
FSA, IS41/IS52
Seatpost
Level Nine Race, 400mm
Handlebar
Level Nine Race, 31.8mm diameter, 740mm, 15mm rise
Brake lever
Magura MT2
Brakes
Magura MT2
Drivetrain
Crankset
Shimano XT FC-M8000-B2, 175mm
Shifter
Shimano SLX SL-M7000-B-I, 11-Speed, Magura I-Spec B
Bottom bracket
Shimano BB-MT500PA, pressfit
Front derailleur
Shimano XT FD-M8020-E, E-Type, sideswing
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Aluminum
Front suspension
RockShox Judy Gold RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYG-RL-A2
Name
Judy Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Mavic Crossmax wheelset
Tires
Front: Schwalbe Racing Ray, Addix-Speedgrip, Kevlar, 2.25", Rear: Schwalbe Racing Ralph, Addix-Speed, Kevlar, 2.25"
Spokes
Mavic Crossmax wheelset
Rear hub
Mavic Crossmax wheelset
Front hub
Mavic Crossmax wheelset

Geometry

Size 18" 20" 22"
a
Seat tube length
440,0
485,0
525,0
b
Seat tube angle
74,2º
74,2º
74,2º
c
Top tube length
606,0
628,0
650,0
d
Head tube length
110,0
115,0
130,0
e
Head tube angle
69,4º
69,4º
69,4º
f
Rake
51,0
51,0
52,0
g
Trail
86,0
86,0
85,0
h
Wheelbase
1120,0
1143,0
1166,0
i
Chainstay length
438,0
438,0
438,0
j
Bottom bracket drop
69,0
69,0
69,0
k
Stack height
621,0
635,0
648,0
l
Reach
434,0
452,0
469,0
m
Standover height
776,0
811,0
841,0
x
Bottom bracket height
305,0
305,0
305,0
y
Front center
691,0
714,0
737,0
