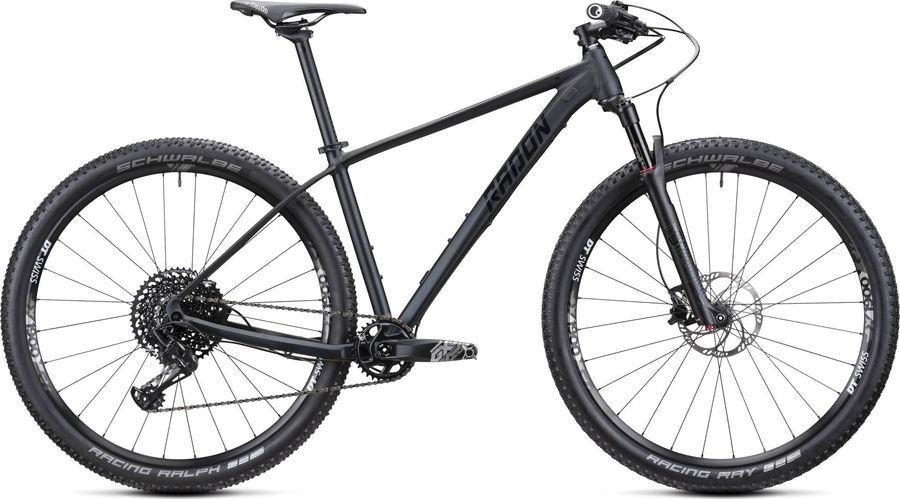

Radon JEALOUS AL 9.0 2020

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
10,9 kg
Front travel
100mm
Radon JEALOUS AL 9.0 2020

About the Radon JEALOUS AL 9.0 2020

The Radon JEALOUS AL 9.0 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 10,9 kg.

Features

The Radon JEALOUS AL 9.0 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Ergon GE10 Evo
Pedals
not included
Components
Steam
LEVEL NINE Race, 31.8mm, 6°; 16"/60mm, 18"/75mm, 20"/75mm, 22"/90mm
Saddle
Selle Italia X1
Headset
FSA, IS41/IS52
Seatpost
LEVEL NINE Race, 30.9 x 400mm
Handlebar
LEVEL NINE Race, 31.8 x 740mm, 15mm rise
Brake lever
Magura MT2
Brakes
Magura MT2
Drivetrain
Crankset
SRAM GX Eagle, 32T, 175mm, Boost
Shifter
SRAM GX Eagle, Shiftmix
Bottom bracket
SRAM DUB, PressFit, 92mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
JEALOUS AL
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
DT Swiss X1900 Spline 29, 25mm, 110/148mm
Tires
Schwalbe Racing Ray, Addix Performance Line, Kevlar, 29" x 2.25"
Spokes
DT Swiss X1900 Spline wheelset
Rear hub
DT Swiss X1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear
Front hub
DT Swiss X1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
400,0
440,0
485,0
525,0
b
Seat tube angle
74,0º
74,2º
74,2º
74,2º
c
Top tube length
575,0
600,0
622,0
644,0
d
Head tube length
100,0
100,0
115,0
130,0
e
Head tube angle
68,9º
69,4º
69,4º
69,4º
f
Rake
51,0
51,0
51,0
52,0
g
Trail
90,0
86,0
86,0
85,0
h
Wheelbase
1092,0
1114,0
1137,0
1160,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
69,0
69,0
69,0
69,0
k
Stack height
612,0
615,0
629,0
642,0
l
Reach
401,0
428,0
446,0
463,0
m
Standover height
749,0
770,0
805,0
835,0
x
Bottom bracket height
305,0
305,0
305,0
305,0
y
Front center
669,0
691,0
714,0
737,0
