Radon Jealous AL 9.0 2x11 27.5" 2019

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
11,1 kg
Front travel
100mm

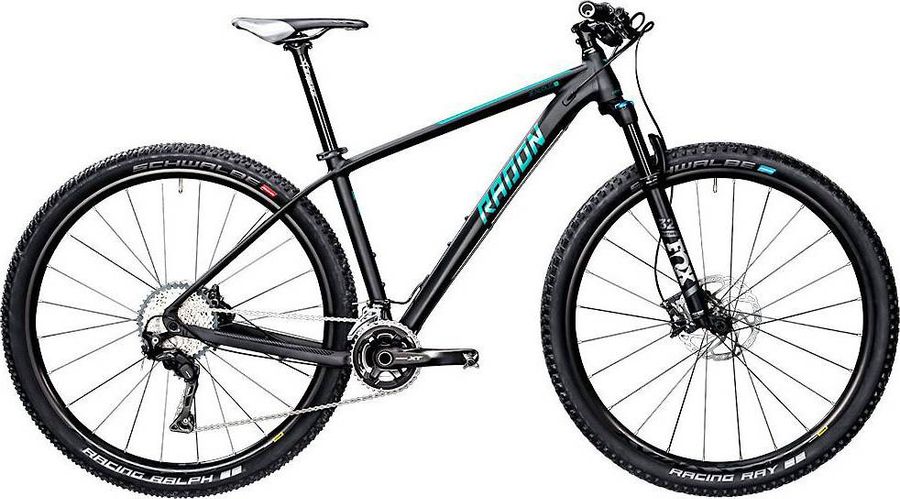

Radon Jealous AL 9.0 2x11 27.5" 2019

About the Radon Jealous AL 9.0 2x11 27.5" 2019

The Radon Jealous AL 9.0 2x11 27.5" 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes. The bike weighs approximately 11,1 kg.

Features

The Radon Jealous AL 9.0 2x11 27.5" 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE10 slim
Components
Steam
Race Face Turbine Basic, 60mm on 16", 70mm on 18"/20"
Saddle
Selle Italia X3
Headset
FSA, IS41/IS52
Seatpost
Race Face Turbine, 400mm
Handlebar
Race Face Turbine, 31.8mm, 740 mm, 0.5" rise
Brake lever
Shimano XT BR-M8000
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano XT FC-M8000-B2, 175mm
Shifter
Shimano SLX SL-M7000-B-I, 11-Speed, Magura I-Spec B
Bottom bracket
Shimano BB-MT500PA, pressfit
Front derailleur
Shimano XT FD-M8020-E, E-Type, sideswing
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Aluminum
Front suspension
Fox 32 Rhythm
Wheels
Rims
Mavic Crossmax wheelset
Tires
Front: Schwalbe Racing Ray, Addix-Speedgrip, Kevlar, 2.25", Rear: Schwalbe Racing Ralph, Addix-Speed, Kevlar, 2.25"
Spokes
Mavic Crossmax wheelset
Rear hub
Mavic Crossmax wheelset
Front hub
Mavic Crossmax wheelset

Geometry

Size 16" 18" 20"
a
Seat tube length
395,0
440,0
485,0
b
Seat tube angle
74,2º
74,2º
74,2º
c
Top tube length
573,0
595,0
617,0
d
Head tube length
110,0
120,0
135,0
e
Head tube angle
69,2º
69,2º
69,2º
f
Rake
44,0
44,0
45,0
g
Trail
88,0
88,0
87,0
h
Wheelbase
1081,0
1103,0
1127,0
i
Chainstay length
417,0
417,0
417,0
j
Bottom bracket drop
48,0
48,0
48,0
k
Stack height
584,0
593,0
607,0
l
Reach
409,0
428,0
445,0
m
Standover height
731,0
763,0
797,0
x
Bottom bracket height
307,0
307,0
307,0
y
Front center
668,0
690,0
714,0
