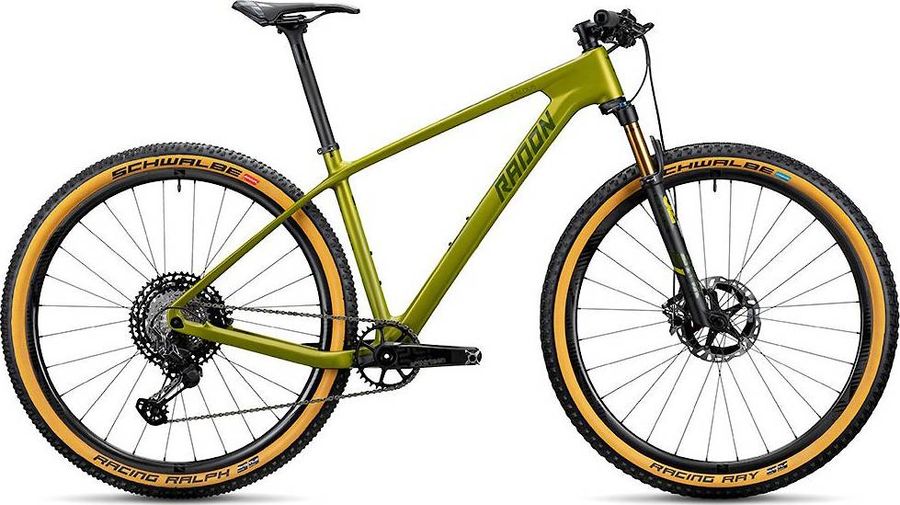

Radon Jealous CF 10.0 2020

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
8,8 kg
Front travel
100mm
Radon Jealous CF 10.0 2020

About the Radon Jealous CF 10.0 2020

The Radon Jealous CF 10.0 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 8,8 kg.

Features

The Radon Jealous CF 10.0 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Radon Racing
Components
Steam
Newmen Evolution SL 2s, 31.8mm clamp, Length: 60mm (16"), 70mm (18"/20"), 80mm (22")
Saddle
Selle Italia X-LR SF Carbon
Headset
ACROS AiX, IS41/IS52
Seatpost
Newmen Advanced Carbon, 430mm length
Handlebar
Newmen Advanced SL Carbon, 31.8mm bore, 740mm width
Brake lever
Shimano XTR BR-M9100
Brakes
Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
312 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M9100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin pad w/o fin (w/ titanium back plate)
Pad standard
K04Ti Metal pad w/o fin (w/ titanium back plate)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
e*thirteen XCX Race Mountain Carbon, 175mm length
Shifter
Shimano XTR SL-M9100-IR, 12-speed, I-Spec EV
Bottom bracket
e*thirteen BB92, press-fit, 92mm
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Carbon Fiber
Front suspension
Fox 32 SC Float Factory Kashima
Wheels
Rims
Reynolds Carbon TR 249, 24mm internal width
Tires
Front: Schwalbe Racing Ray, Addix Speedgrip, Skinwall, TLE, Kevlar, 29" x 2.25", Rear: Schwalbe Racing Ralph, Addix Speed, Skinwall, TLE, Kevlar, 29" x 2.25"
Spokes
Reynolds Carbon TR 249 wheelset
Rear hub
Reynolds Carbon TR 249 wheelset, 110x15mm Boost front, 148x12mm Boost rear
Front hub
Reynolds Carbon TR 249 wheelset, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
400,0
445,0
490,0
535,0
b
Seat tube angle
73,6º
73,6º
73,6º
73,6º
c
Top tube length
576,0
602,0
624,0
646,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
69,6º
69,6º
69,6º
69,6º
f
Rake
48,0
52,0
52,0
51,0
g
Trail
88,0
84,0
84,0
85,0
h
Wheelbase
1076,0
1108,0
1131,0
1153,0
i
Chainstay length
432,5
432,5
432,5
432,5
j
Bottom bracket drop
68,0
68,0
68,0
68,0
k
Stack height
617,0
627,0
634,0
646,0
l
Reach
394,0
418,0
438,0
457,0
m
Standover height
739,0
770,0
798,0
826,0
x
Bottom bracket height
306,0
306,0
306,0
306,0
y
Front center
652,0
684,0
707,0
729,0
