Radon Jealous CF 10.0 EA 2020

MTB Cross Country
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
8,7 kg
Front travel
100mm

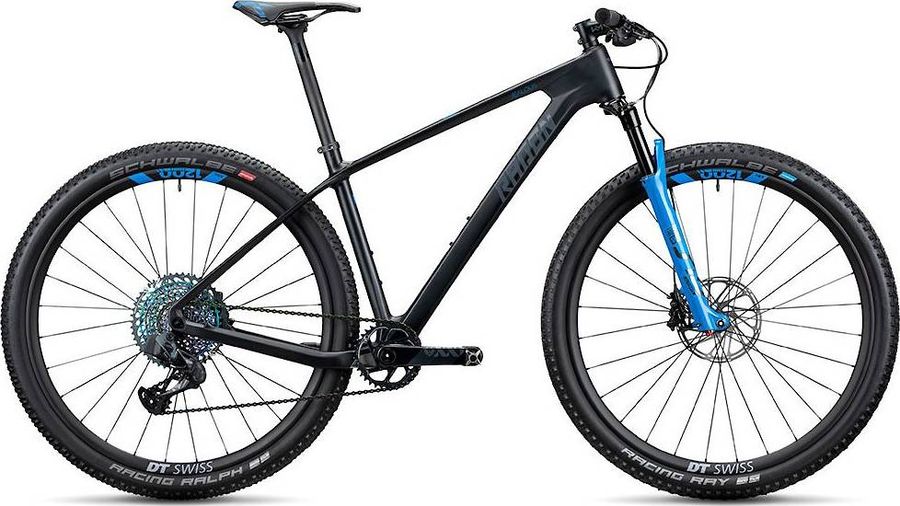

Radon Jealous CF 10.0 EA 2020

About the Radon Jealous CF 10.0 EA 2020

The Radon Jealous CF 10.0 EA 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 8,7 kg.

Features

The Radon Jealous CF 10.0 EA 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Radon Racing
Components
Steam
Newmen Evolution SL 2s, 31.8mm clamp, Length: 60mm (16"), 70mm (18"/20"), 80mm (22")
Saddle
Selle Italia X-LR SF Carbon
Headset
ACROS AiX, IS41/IS52
Seatpost
Newmen Advanced Carbon, 430mm length
Handlebar
Newmen Advanced SL Carbon, 31.8mm bore, 740mm width
Brake lever
SRAM Level Ultimate
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle Carbon SL DUB, 175mm length
Shifter
SRAM XX1 Eagle AXS, 12-speed, electronic wireless
Bottom bracket
SRAM DUB, PressFit, 92mm
Chain
SRAM Eagle XX1 Rainbow
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM XX1 XG1299 Eagle
Frameset
Frame
Carbon Fiber
Front suspension
RockShox SID Ultimate DebonAir 1582 g
Color
Gloss Black, Gloss Blue
Damper type
Charger 2 RLC
fork offset
42mm (27.5"), 42mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SID-ULT-B4
Name
SID Ultimate
Spring
DebonAir
Travel (mm)
100mm, 120mm
Upper tube type
32mm straight wall aluminum
Weight based on
27.5" BOOST, 100mm, Maxle Stealth
Weight
1582
Wheel size
27.5", 29"
Wheels
Rims
DT Swiss XRC1200 Spline 29, 25mm internal width
Tires
Front: Schwalbe Racing Ray, Addix Speedgrip, TLE, Kevlar, 29" x 2.25", Rear: Schwalbe Racing Ralph, Addix Speed, TLE, Kevlar, 29" x 2.25"
Spokes
DT Swiss XRC1200 Spline wheelset
Rear hub
DT Swiss XRC1200 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear
Front hub
DT Swiss XRC1200 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
400,0
445,0
490,0
535,0
b
Seat tube angle
73,6º
73,6º
73,6º
73,6º
c
Top tube length
576,0
602,0
624,0
646,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
69,6º
69,6º
69,6º
69,6º
f
Rake
48,0
52,0
52,0
51,0
g
Trail
88,0
84,0
84,0
85,0
h
Wheelbase
1076,0
1108,0
1131,0
1153,0
i
Chainstay length
432,5
432,5
432,5
432,5
j
Bottom bracket drop
68,0
68,0
68,0
68,0
k
Stack height
617,0
627,0
634,0
646,0
l
Reach
394,0
418,0
438,0
457,0
m
Standover height
739,0
770,0
798,0
826,0
x
Bottom bracket height
306,0
306,0
306,0
306,0
y
Front center
652,0
684,0
707,0
729,0
