Radon Jealous CF 8.0 2020

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
9,7 kg
Front travel
100mm

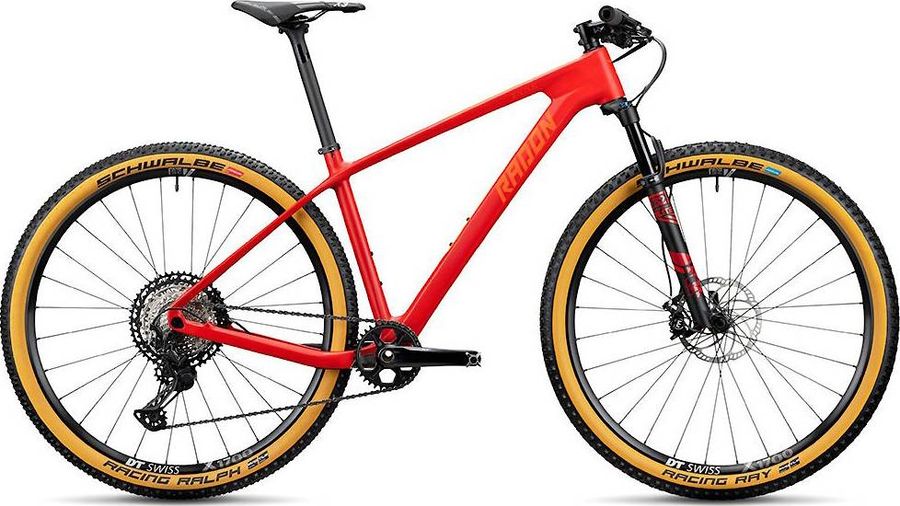

Radon Jealous CF 8.0 2020

About the Radon Jealous CF 8.0 2020

The Radon Jealous CF 8.0 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 9,7 kg.

Features

The Radon Jealous CF 8.0 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Radon Racing
Components
Steam
Newmen Evolution, 31.8mm clamp, Length: 60mm (16"), 70mm (18"/20"), 80mm (22")
Saddle
Selle Italia X3
Headset
ACROS AiX, IS41/IS52
Seatpost
Newmen Advanced Carbon, 430mm length
Handlebar
Newmen Advanced Carbon, 31.8mm bore, 740mm width
Brake lever
Magura MT Trail Custom
Brakes
Magura MT Trail Custom
Drivetrain
Crankset
Shimano XT FC-M8100, 175mm length
Shifter
Shimano XT SL-M8100-R, 12-speed
Bottom bracket
Shimano BB-MT500, press-fit
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
Carbon Fiber
Front suspension
Fox 32 SC Float Performance Elite
Wheels
Rims
DT Swiss X1700 Spline 29, 25mm internal width
Tires
Front: Schwalbe Racing Ray, Addix Speedgrip, Skinwall, TLE, Kevlar, 29" x 2.25", Rear: Schwalbe Racing Ralph, Addix Speed, Skinwall, TLE, Kevlar, 29" x 2.25"
Spokes
DT Swiss X1700 Spline wheelset
Rear hub
DT Swiss X1700 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear
Front hub
DT Swiss X1700 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
400,0
445,0
490,0
535,0
b
Seat tube angle
73,6º
73,6º
73,6º
73,6º
c
Top tube length
576,0
602,0
624,0
646,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
69,6º
69,6º
69,6º
69,6º
f
Rake
48,0
52,0
52,0
51,0
g
Trail
88,0
84,0
84,0
85,0
h
Wheelbase
1076,0
1108,0
1131,0
1153,0
i
Chainstay length
432,5
432,5
432,5
432,5
j
Bottom bracket drop
68,0
68,0
68,0
68,0
k
Stack height
617,0
627,0
634,0
646,0
l
Reach
394,0
418,0
438,0
457,0
m
Standover height
739,0
770,0
798,0
826,0
x
Bottom bracket height
306,0
306,0
306,0
306,0
y
Front center
652,0
684,0
707,0
729,0
