Radon Jealous CF 9.0 2020

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
9 kg
Front travel
100mm

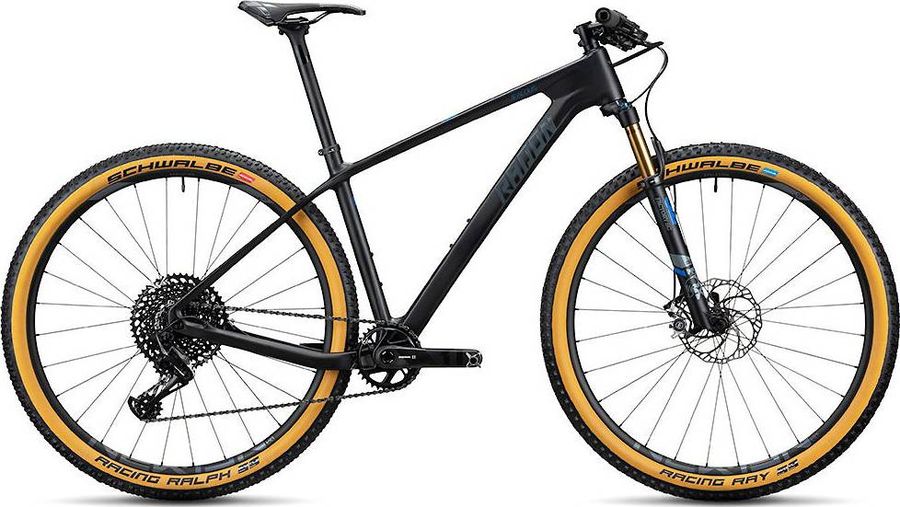

Radon Jealous CF 9.0 2020

About the Radon Jealous CF 9.0 2020

The Radon Jealous CF 9.0 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 9 kg.

Features

The Radon Jealous CF 9.0 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Radon Racing
Components
Steam
Newmen Evolution SL, 31.8mm clamp, Length: 60mm (16"), 70mm (18"/20"), 80mm (22")
Saddle
Selle Italia X-LR SF
Headset
ACROS AiX, IS41/IS52
Seatpost
Newmen Advanced Carbon, 430mm length
Handlebar
Newmen Advanced Carbon, 31.8mm bore, 740mm width
Brake lever
Magura MT8 Pro
Brakes
Magura MT8
Drivetrain
Crankset
SRAM X1 Eagle Carbon DUB, 175mm length
Shifter
SRAM GX Eagle, 12-speed
Bottom bracket
SRAM DUB, PressFit, 92mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Front suspension
Fox 32 SC Float Factory Kashima
Wheels
Rims
Newmen Evolution SL X.A.25, 25mm internal width
Tires
Front: Schwalbe Racing Ray, Addix Speedgrip, Skinwall, TLE, Kevlar, 29" x 2.25", Rear: Schwalbe Racing Ralph, Addix Speed, Skinwall, TLE, Kevlar, 29" x 2.25"
Spokes
Newmen Evolution SL X.A.25 wheelset
Rear hub
Newmen Evolution SL X.A.25 wheelset, 110x15mm Boost front, 148x12mm Boost rear
Front hub
Newmen Evolution SL X.A.25 wheelset, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
400,0
445,0
490,0
535,0
b
Seat tube angle
73,6º
73,6º
73,6º
73,6º
c
Top tube length
576,0
602,0
624,0
646,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
69,6º
69,6º
69,6º
69,6º
f
Rake
48,0
52,0
52,0
51,0
g
Trail
88,0
84,0
84,0
85,0
h
Wheelbase
1076,0
1108,0
1131,0
1153,0
i
Chainstay length
432,5
432,5
432,5
432,5
j
Bottom bracket drop
68,0
68,0
68,0
68,0
k
Stack height
617,0
627,0
634,0
646,0
l
Reach
394,0
418,0
438,0
457,0
m
Standover height
739,0
770,0
798,0
826,0
x
Bottom bracket height
306,0
306,0
306,0
306,0
y
Front center
652,0
684,0
707,0
729,0
