Radon Jealous Hybrid 8 2019

E-Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
18,9 kg
Front travel
100mm
Radon Jealous Hybrid 8 2019

About the Radon Jealous Hybrid 8 2019

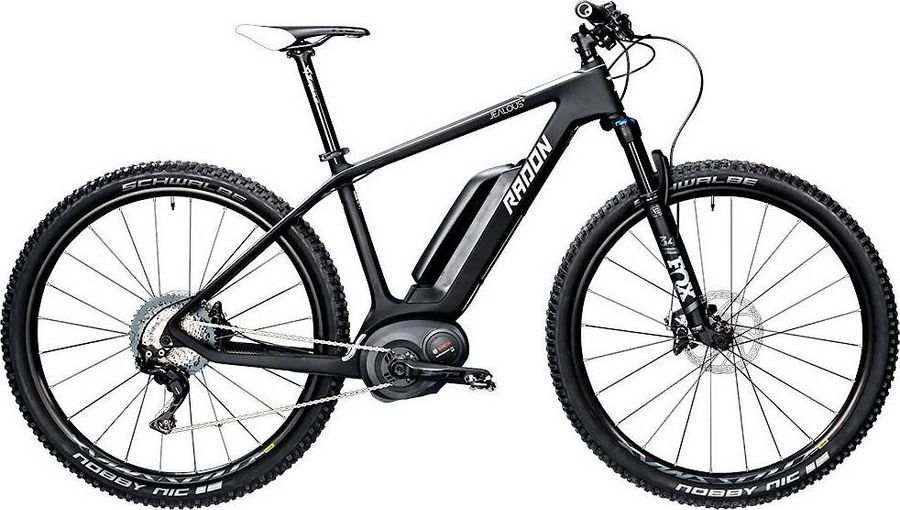

The Radon Jealous Hybrid 8 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes. The bike weighs approximately 18,9 kg.

Features

The Radon Jealous Hybrid 8 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE10
Components
Steam
Race Face Turbine Basic, 60mm on 17", 70mm on 19", 80mm on 21"
Saddle
Selle Italia X3
Battery
Bosch Powerpack
Headset
FSA, IS41/IS52
Seatpost
Race Face Turbine, 400mm
Handlebar
Race Face Turbine Basic, 31.8mm diameter, 740 mm, 20mm rise
Brake lever
Front: Shimano XT BR-M8020, Rear: Shimano XT BR-M8000
Brakes
Shimano Deore XT BR-M8020 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
D01S Resin
D03S Resin
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
RT-MT800
SM-RT99
RT-EM810
RT-EM910
Drivetrain
Crankset
FSA CK-745, 175mm
Motor
Bosch Performance Line CX
Shifter
Shimano XT SL-M8000, 11-speed, I-Spec
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-E8000-11 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-E8000-11
Pin link plate
SIL-TEC
Roller link plate
Chromizing
Type
HG-X11
Frameset
Frame
Carbon Fiber
Front suspension
Fox 34 Rhythm
Wheels
Rims
Mavic Crossmax wheelset
Tires
Schwalbe Nobby Nic, Addix-PerformanceL, 29" x 2.25"
Spokes
Mavic Crossmax wheelset
Rear hub
Mavic Crossmax wheelset
Front hub
Mavic Crossmax wheelset

Geometry

Size 17" 19" 21"
a
Seat tube length
420,0
470,0
515,0
b
Seat tube angle
73,0º
73,0º
73,0º
c
Top tube length
583,0
603,0
623,0
d
Head tube length
105,0
115,0
125,0
e
Head tube angle
69,5º
70,0º
70,0º
f
Rake
51,0
51,0
51,0
g
Trail
86,0
82,0
82,0
h
Wheelbase
1139,0
1154,0
1174,0
i
Chainstay length
491,0
491,0
491,0
j
Bottom bracket drop
65,0
65,0
65,0
k
Stack height
619,0
630,0
640,0
l
Reach
395,0
411,0
428,0
m
Standover height
769,0
803,0
833,0
x
Bottom bracket height
309,0
309,0
309,0
y
Front center
656,0
671,0
690,0
