Radon RENDER 10.0 2020

E-Bike
MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
22,5 kg
Front travel
150mm
Rear travel
140mm

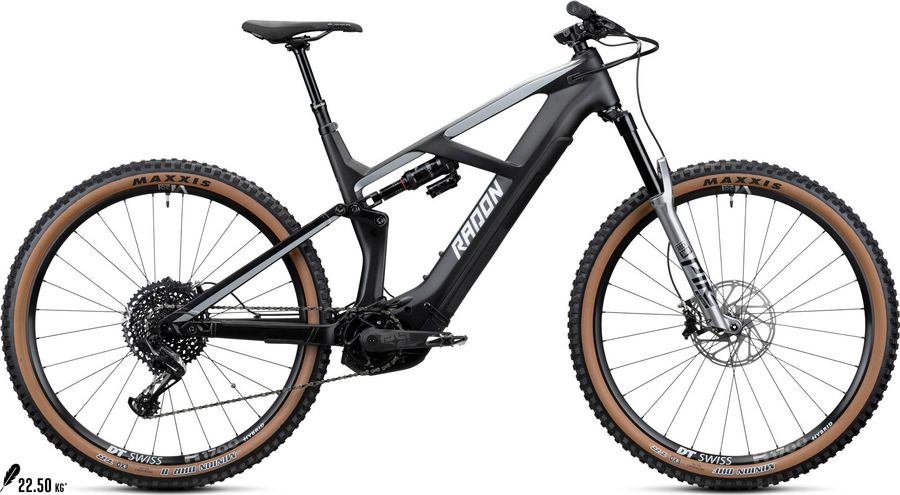

Radon RENDER 10.0 2020

About the Radon RENDER 10.0 2020

The Radon RENDER 10.0 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 22,5 kg.

Features

The Radon RENDER 10.0 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater
Pedals
not included
Remote
Bosch Kiox
Components
Steam
Race Face Turbine, 35 x 50mm
Saddle
SDG Radar, CroMo
Battery
Bosch Powertube 625Wh
Headset
Acros Block-Lock, ZS56/ZS56
Seatpost
SDG Tellis, 31.6mm; M/125mm, L/150mm, XL/150mm
Handlebar
Race Face Turbine R, 35 x 800mm, 35mm rise
Brake lever
SRAM G2 RSC
Brakes
SRAM G2 RSC Hydraulic 248 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black
Model
DB-G2-RSC-A1
Name
G2 RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Weight
248
Drivetrain
Crankset
e*thirteen Plus e*spec, SRAM Eagle Chainring, 34T, 165mm
Motor
Bosch Performance Line CX
Shifter
SRAM X01 Eagle, Single Click, Matchmaker X
Chain guide
e*thirteen e*spec Plus
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
RENDER HYBRID; Material: Carbon main frame / Aluminium rear triangle, Max. width tire: 2.6", Powertube Capacity: 625 Wh
Rear suspension
RockShox Super Deluxe Ultimate 453 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
268, 320, 380
Model
RS-SDLX-ULT-B2
Name
Super Deluxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
453
Front suspension
RockShox Pike Ultimate RC2 DebonAir 1832 g
Color
Gloss Black, Gloss Silver
Damper type
Charger 2.1 RC2, Charger 2.1 RCT3
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-PIKE-ULT-B3
Name
Pike Ultimate
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 120mm, RC2 damper, Maxle Stealth
Weight
1832
Wheel size
27.5", 29"
Wheels
Rims
DT Swiss H1700 Spline 29, 30mm, 110/148mm
Tires
Maxxis Minion DHF Skinwall Dual, EXO, TR, 29" x 2.5" WT
Spokes
DT Swiss H1700 Spline wheelset
Rear hub
DT Swiss H1700 Spline wheelset, 6-bolt rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Front hub
DT Swiss H1700 Spline wheelset, 6-bolt rotor mounts, 15x110mm Boost front, 12x148mm Boost rear

Geometry

Size MD LG XL
a
Seat tube length
425,0
455,0
490,0
b
Seat tube angle
75,5º
75,5º
75,5º
c
Top tube length
583,0
606,0
628,0
d
Head tube length
110,0
120,0
135,0
e
Head tube angle
65,5º
65,5º
65,5º
f
Rake
45,0
45,0
45,0
g
Trail
121,0
121,0
121,0
h
Wheelbase
1206,9
1230,8
1254,2
i
Chainstay length
449,2
449,2
449,2
j
Bottom bracket drop
28,0
28,0
28,0
k
Stack height
607,7
616,8
630,5
l
Reach
432,1
451,9
469,1
m
Standover height
766,0
766,0
766,0
x
Bottom bracket height
346,0
346,0
346,0
y
Front center
759,0
783,0
806,0
