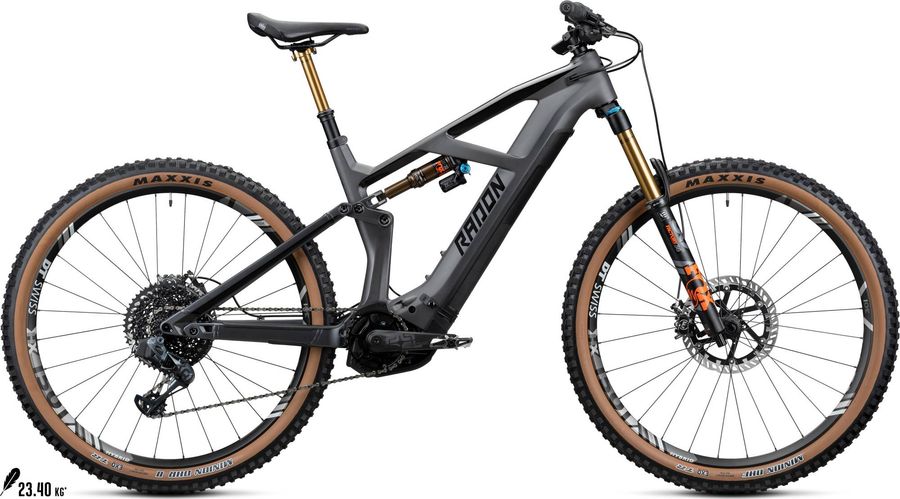

Radon RENDER 10.0 HD 2020
The Radon RENDER 10.0 HD 2020 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM X01 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
23,1 kg
Front travel
160mm
Rear travel
140mm
About the Radon RENDER 10.0 HD 2020
The Radon RENDER 10.0 HD 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 23,1 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Ergon GD10 Factory
|
|---|---|
|
Pedals
|
not included
|
|
Remote
|
Bosch Kiox
|
|
Steam
|
Race Face Turbine R, 35 x 40mm
|
|---|---|
|
Saddle
|
Ergon SM10 E-Mountain Stealth
|
|
Battery
|
Bosch Powertube 625Wh
|
|
Headset
|
Acros Block-Lock, ZS56/ZS56
|
|
Seatpost
|
Fox Transfer Factory, Kashima, 31.6mm; M/125mm, L/150mm, XL/150mm
|
|
Handlebar
|
Race Face Turbine R, 35 x 800mm, 35mm rise
|
|
Brake lever
|
Magura MT7
|
|
Brakes
|
Magura MT7
|
|
Crankset
|
e*thirteen Plus e*spec, SRAM Eagle Chainring, 34T, 165mm
|
|---|---|
|
Motor
|
Bosch Performance Line CX
|
|
Shifter
|
SRAM AXS Eagle, Shiftmix
|
|
Chain guide
|
e*thirteen e*spec Plus
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle AXS
12s
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Frame
|
RENDER HYBRID; Material: Carbon main frame / Aluminium rear triangle, Max. width tire: 2.6", Powertube Capacity: 625 Wh
|
|---|---|
|
Rear suspension
|
Fox Float DPX2 Factory EVOL
|
|
Front suspension
|
Fox 36 Float Factory Kashima
|
|
Rims
|
DT Swiss HX1501 Spline 29, 30mm, 110/148mm
|
|---|---|
|
Tires
|
Maxxis Minion DHF Skinwall Dual, EXO, TR, 29" x 2.5" WT
|
|
Spokes
|
DT Swiss HX1501 Spline wheelset
|
|
Rear hub
|
DT Swiss HX1501 Spline wheelset, 6-bolt rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
|
|
Front hub
|
DT Swiss HX1501 Spline wheelset, 6-bolt rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
|
Geometry
| Size | MD | LG | XL |
|---|---|---|---|
|
a
Seat tube length
|
425,0
|
455,0
|
490,0
|
|
b
Seat tube angle
|
75,5º
|
75,5º
|
75,5º
|
|
c
Top tube length
|
583,0
|
606,0
|
628,0
|
|
d
Head tube length
|
110,0
|
120,0
|
135,0
|
|
e
Head tube angle
|
65,5º
|
65,5º
|
65,5º
|
|
f
Rake
|
45,0
|
45,0
|
45,0
|
|
g
Trail
|
121,0
|
121,0
|
121,0
|
|
h
Wheelbase
|
1206,9
|
1230,8
|
1254,2
|
|
i
Chainstay length
|
449,2
|
449,2
|
449,2
|
|
j
Bottom bracket drop
|
28,0
|
28,0
|
28,0
|
|
k
Stack height
|
607,7
|
616,8
|
630,5
|
|
l
Reach
|
432,1
|
451,9
|
469,1
|
|
m
Standover height
|
766,0
|
766,0
|
766,0
|
|
x
Bottom bracket height
|
346,0
|
346,0
|
346,0
|
|
y
Front center
|
759,0
|
783,0
|
806,0
|
