Radon RENDER 8.0 2020

E-Bike
MTB Trail
Groupset
SRAM SX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
23,5 kg
Front travel
150mm
Rear travel
140mm

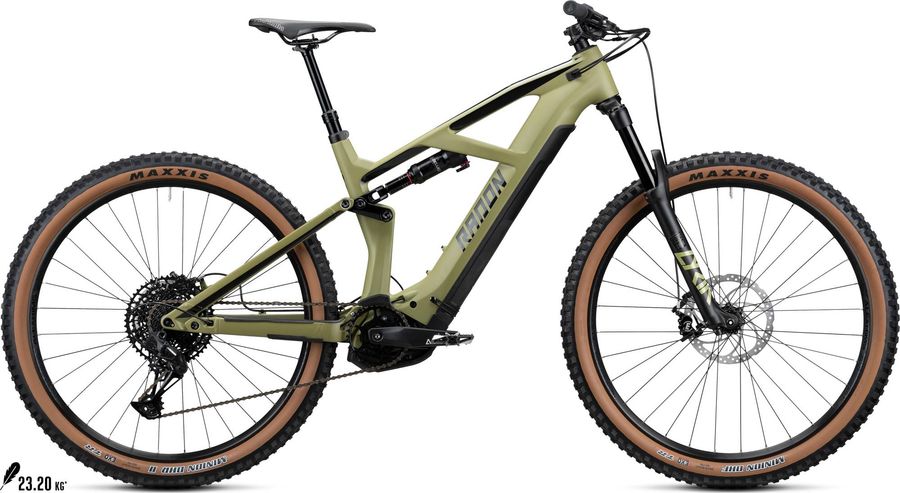

Radon RENDER 8.0 2020

About the Radon RENDER 8.0 2020

The Radon RENDER 8.0 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 23,5 kg.

Features

The Radon RENDER 8.0 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater
Pedals
not included
Remote
Bosch Purion
Components
Steam
Race Face Chester, 35mm; M/40mm, L/40mm, XL/60mm
Saddle
Selle Italia X1
Battery
Bosch Powertube 625Wh
Headset
Acros Block-Lock, ZS56/ZS56
Seatpost
Radon Dropper, 31.6 x 130mm
Handlebar
Race Face Chester, 35 x 780mm, 20mm rise
Brake lever
Magura MT Trail Custom
Brakes
Magura MT Trail Custom
Drivetrain
Crankset
Acid E-Crank, SRAM Eagle Chainring, 34T, 165mm
Motor
Bosch Performance Line CX
Shifter
SRAM NX Eagle, Shiftmix, Single Click
Chain guide
e*thirteen e*spec Plus
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
RENDER HYBRID; Material: Carbon main frame / Aluminium rear triangle, Max. width tire: 2.6", Powertube Capacity: 625 Wh
Front suspension
RockShox Lyrik Select DebonAir 1996 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-SEL-C2
Name
Lyrik Select
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, Maxle Stealth
Weight
1996
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
Alex MD 30
Tires
Maxxis Minion DHF Skinwall Dual, EXO, TR, 29" x 2.5" WT
Spokes
DT Swiss Factory
Rear hub
Shimano Alivio FH-MT400-B, 148mm
Front hub
Shimano Alivio HB-MT400-B, 110mm

Geometry

Size MD LG XL
a
Seat tube length
425,0
455,0
490,0
b
Seat tube angle
75,5º
75,5º
75,5º
c
Top tube length
583,0
606,0
628,0
d
Head tube length
110,0
120,0
135,0
e
Head tube angle
65,5º
65,5º
65,5º
f
Rake
45,0
45,0
45,0
g
Trail
121,0
121,0
121,0
h
Wheelbase
1206,9
1230,8
1254,2
i
Chainstay length
449,2
449,2
449,2
j
Bottom bracket drop
28,0
28,0
28,0
k
Stack height
607,7
616,8
630,5
l
Reach
432,1
451,9
469,1
m
Standover height
766,0
766,0
766,0
x
Bottom bracket height
346,0
346,0
346,0
y
Front center
759,0
783,0
806,0
