Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,25 kg
Front travel
130mm
Rear travel
120mm

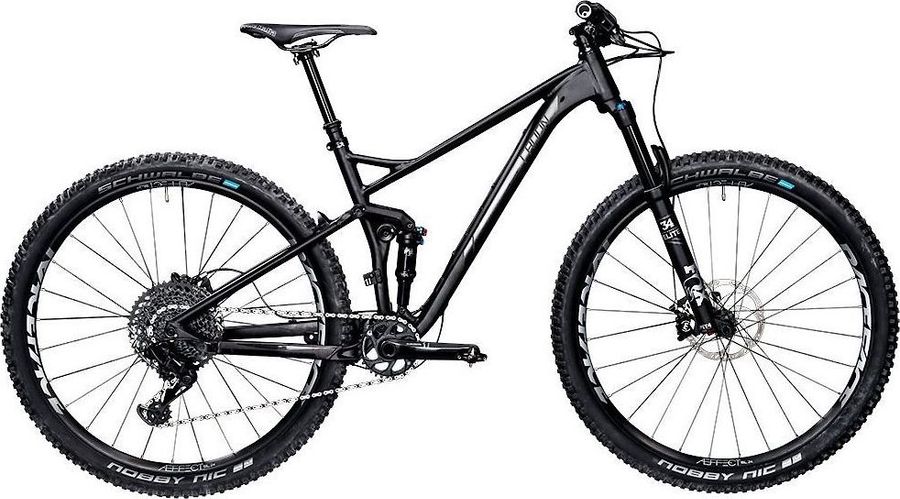

About the Radon Skeen Trail 10.0 27.5" 2018
The Radon Skeen Trail 10.0 27.5" 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 12,25 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Ergon GE10 slim
|
|---|
|
Steam
|
Race Face Turbine Basic, 31.8mm clamp, 60mm length (16", 18"), 70mm length (20")
|
|---|---|
|
Saddle
|
Selle Italia X1
|
|
Headset
|
FSA, ZS44/IS52
|
|
Seatpost
|
Fox Transfer Performance dropper, 125mm travel (16", 18"), 150mm travel (20")
|
|
Handlebar
|
Race Face Turbine, 31.8mm clamp, 760mm width, 0.5" rise
|
|
Brake lever
|
Magura MT Trail Custom
|
|
Brakes
|
Magura MT Trail Custom
|
|
Crankset
|
SRAM X1 1400, 175mm length
|
|---|---|
|
Shifter
|
SRAM GX Eagle, 12-speed, Shiftmix
|
|
Bottom bracket
|
SRAM GXP, PressFit
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Aluminum
|
|---|---|
|
Rear suspension
|
Fox Float DPS Performance Elite EVOL
|
|
Front suspension
|
Fox 34 Float Performance Elite
|
|
Rims
|
Race Face Aeffect SL 24
|
|---|---|
|
Tires
|
Schwalbe Nobby Nic, Addix-Speedgrip, TLE, Kevlar, 27.5" x 2.35"
|
|
Spokes
|
Race Face Aeffect
|
|
Rear hub
|
Race Face Aeffect, 110x15mm Boost front, 142x12mm rear
|
|
Front hub
|
Race Face Aeffect, 110x15mm Boost front, 142x12mm rear
|
Geometry
| Size | 16" | 18" | 20" |
|---|---|---|---|
|
a
Seat tube length
|
420,0
|
450,0
|
480,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
575,0
|
597,0
|
619,0
|
|
d
Head tube length
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
67,5º
|
67,5º
|
67,5º
|
|
f
Rake
|
45,0
|
45,0
|
45,0
|
|
g
Trail
|
99,0
|
99,0
|
99,0
|
|
h
Wheelbase
|
1131,0
|
1154,0
|
1177,0
|
|
i
Chainstay length
|
430,0
|
430,0
|
430,0
|
|
j
Bottom bracket drop
|
24,0
|
24,0
|
24,0
|
|
k
Stack height
|
593,0
|
602,0
|
611,0
|
|
l
Reach
|
422,0
|
441,0
|
460,0
|
|
m
Standover height
|
711,2
|
735,8
|
759,5
|
|
x
Bottom bracket height
|
331,0
|
331,0
|
331,0
|
|
y
Front center
|
702,0
|
725,0
|
748,0
|
