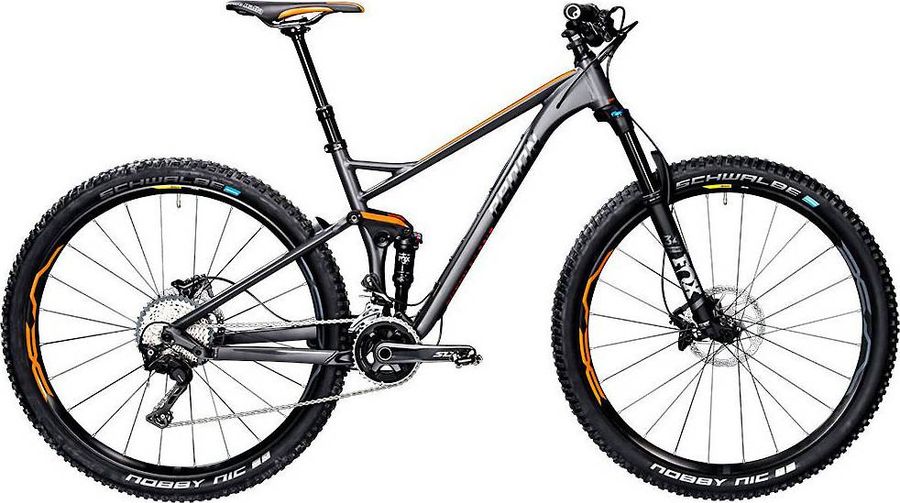

Radon Skeen Trail 8.0 2019

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
13,9 kg
Front travel
130mm
Rear travel
120mm
Radon Skeen Trail 8.0 2019

About the Radon Skeen Trail 8.0 2019

The Radon Skeen Trail 8.0 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 13,9 kg.

Features

The Radon Skeen Trail 8.0 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE10, slim
Components
Steam
Race Face Ride 35, 60mm on 16"/18"/20", 70mm on 22"
Saddle
Selle Italia X1
Headset
FSA ZS44/IS52
Seatpost
Radon Dropper, 125mm on 16"/18", 150mm on 20"/22"
Handlebar
Race Face Ride, 35mm diameter, 760mm
Brake lever
Front: Shimano BR-MT520, Rear: Shimano BR-MT500
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano SLX FC-M7000, 175mm
Shifter
Shimano SLX SL-M7000-I, 11-speed, I-Spec
Bottom bracket
Shimano BB-MT500, pressfit
Front derailleur
Shimano SLX FD-M7020, direct mount, sideswing
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Aluminum
Rear suspension
Fox Float DPS Performance EVOL
Front suspension
Fox 34 Rhythm
Wheels
Rims
Mavic XA wheelset, 30mm inner width
Tires
Front: Schwalbe Nobby Nic, Addix-Speedgrip, TLE, Kevlar, 29" x 2.35", Rear: Schwalbe Nobby Nic, Addix-Speedgrip, TLE, Kevlar, 29" x 2.25"
Spokes
Mavic XA wheelset
Rear hub
Mavic XA wheelset
Front hub
Mavic XA wheelset

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
420,0
450,0
480,0
510,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
581,0
597,0
619,0
641,0
d
Head tube length
105,0
105,0
115,0
125,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
53,0
52,0
53,0
53,0
g
Trail
94,0
95,0
94,0
94,0
h
Wheelbase
1157,0
1173,0
1195,0
1218,0
i
Chainstay length
451,0
451,0
451,0
451,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
613,0
613,0
622,0
631,0
l
Reach
422,0
439,0
457,0
476,0
m
Standover height
721,0
743,7
768,5
793,1
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
709,0
725,0
747,0
770,0
