Radon Skeen Trail 8.0 27.5" 2018

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,45 kg
Front travel
130mm
Rear travel
120mm

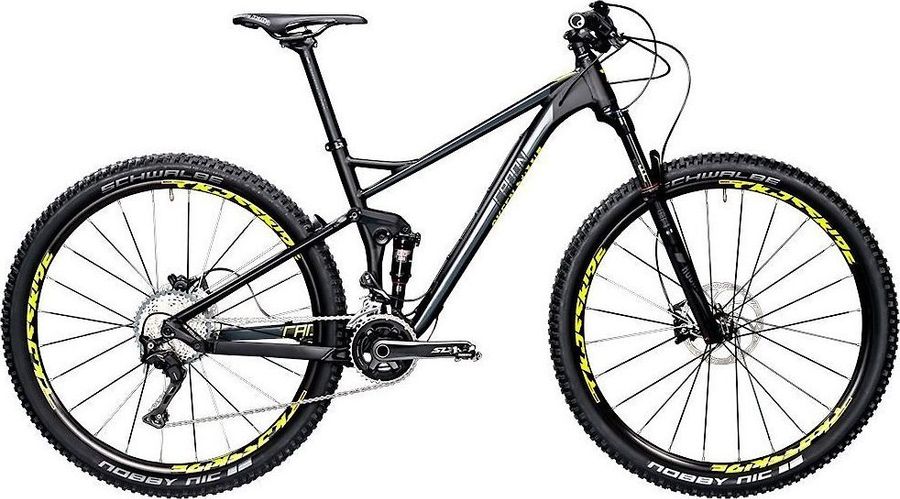

Radon Skeen Trail 8.0 27.5" 2018

About the Radon Skeen Trail 8.0 27.5" 2018

The Radon Skeen Trail 8.0 27.5" 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 12,45 kg.

Features

The Radon Skeen Trail 8.0 27.5" 2018 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE10 slim
Components
Steam
Level Nine Race, 31.8mm clamp, 60mm length (16", 18"), 75mm length (20")
Saddle
Selle Italia X1
Headset
FSA, ZS44/IS52
Seatpost
Level Nine Race, 400mm length
Handlebar
Level Nine Race, 31.8mm clamp, 740mm width
Brake lever
Magura MT Trail Custom
Brakes
Magura MT Trail Custom
Drivetrain
Crankset
Shimano SLX FC-M7000-2, 175mm length
Shifter
Shimano XT SL-M8000-I, 11-speed, I-Spec
Bottom bracket
Shimano BB-MT500PA, PressFit
Front derailleur
Shimano SLX FD-M7020, direct mount, sideswing
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Aluminum
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
RockShox Monarch RT3 215 g
Body eyelet
No Bushing, Shock Block, Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 184x48, 190x51, 194x46, 197x48, 197x51, 197x54, 197x57, 200x51, 200x57, 216x63
Lockout force
219, 320, 380
Model
RS-MNR-RT3-D1
Name
Monarch RT3
Rebound tune
H, L, M
Shaft eyelet
Standard, Trek Mount
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
Mavic Crossride
Tires
Schwalbe Nobby Nic, Addix-PerfL, Kevlar, 27.5" x 2.35"
Spokes
Mavic Crossride
Rear hub
Mavic Crossride, 110x15mm Boost front, 142x12mm rear
Front hub
Mavic Crossride, 110x15mm Boost front, 142x12mm rear

Geometry

Size 16" 18" 20"
a
Seat tube length
420,0
450,0
480,0
b
Seat tube angle
75,0º
75,0º
75,0º
c
Top tube length
575,0
597,0
619,0
d
Head tube length
110,0
120,0
130,0
e
Head tube angle
67,5º
67,5º
67,5º
f
Rake
45,0
45,0
45,0
g
Trail
99,0
99,0
99,0
h
Wheelbase
1131,0
1154,0
1177,0
i
Chainstay length
430,0
430,0
430,0
j
Bottom bracket drop
24,0
24,0
24,0
k
Stack height
593,0
602,0
611,0
l
Reach
422,0
441,0
460,0
m
Standover height
711,2
735,8
759,5
x
Bottom bracket height
331,0
331,0
331,0
y
Front center
702,0
725,0
748,0
