Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
12,8 kg
Front travel
130mm
Rear travel
120mm

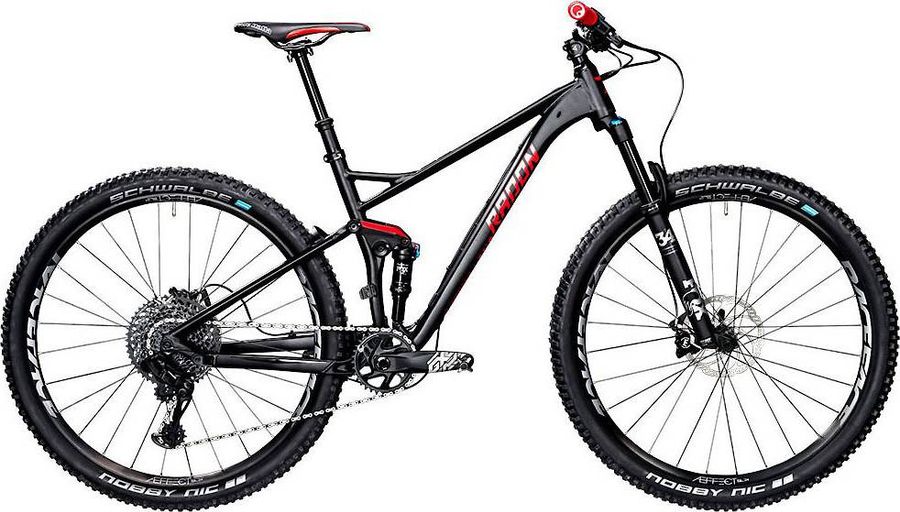

About the Radon Skeen Trail 9.0 2019
The Radon Skeen Trail 9.0 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 12,8 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Ergon GE10, slim
|
|---|
|
Steam
|
Race Face Turbine Basic 35, 60mm on 16"/18"/20", 70mm on 22"
|
|---|---|
|
Saddle
|
Selle Italia X1
|
|
Headset
|
FSA ZS44/IS52
|
|
Seatpost
|
FOX Transfer Performance, 125mm on 16"/18", 150mm on 20"/22"
|
|
Handlebar
|
Race Face Turbine Basic, 35mm diameter, 760mm, 20mm rise
|
|
Brake lever
|
Magura MT Trail Custom
|
|
Brakes
|
Magura MT Trail Custom
|
|
Crankset
|
SRAM GX Eagle, DUB, 175mm
|
|---|---|
|
Shifter
|
SRAM GX Eagle Trigger, 12-speed, Shiftmix
|
|
Bottom bracket
|
SRAM pressfit DUB, 92mm
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Aluminum
|
|---|---|
|
Front suspension
|
Fox 34 Float Performance
|
|
Rear suspension
|
Fox Float DPS Performance EVOL
|
|
Rims
|
Race Face AEffect SL24 wheelset, 24mm inner width
|
|---|---|
|
Tires
|
Front: Schwalbe Nobby Nic, Addix-Speedgrip, TLE, Kevlar, 29" x 2.35", Rear: Schwalbe Nobby Nic, Addix-Speedgrip, TLE, Kevlar, 29" x 2.25"
|
|
Spokes
|
Race Face AEffect SL24 wheelset
|
|
Rear hub
|
Race Face AEffect SL24 wheelset
|
|
Front hub
|
Race Face AEffect SL24 wheelset
|
Geometry
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
|
a
Seat tube length
|
420,0
|
450,0
|
480,0
|
510,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
581,0
|
597,0
|
619,0
|
641,0
|
|
d
Head tube length
|
105,0
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
53,0
|
52,0
|
53,0
|
53,0
|
|
g
Trail
|
94,0
|
95,0
|
94,0
|
94,0
|
|
h
Wheelbase
|
1157,0
|
1173,0
|
1195,0
|
1218,0
|
|
i
Chainstay length
|
451,0
|
451,0
|
451,0
|
451,0
|
|
j
Bottom bracket drop
|
38,0
|
38,0
|
38,0
|
38,0
|
|
k
Stack height
|
613,0
|
613,0
|
622,0
|
631,0
|
|
l
Reach
|
422,0
|
439,0
|
457,0
|
476,0
|
|
m
Standover height
|
721,0
|
743,7
|
768,5
|
793,1
|
|
x
Bottom bracket height
|
336,0
|
336,0
|
336,0
|
336,0
|
|
y
Front center
|
709,0
|
725,0
|
747,0
|
770,0
|
