Radon SKEEN TRAIL CF 10.0 2020

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,2 kg
Front travel
130mm
Rear travel
120mm

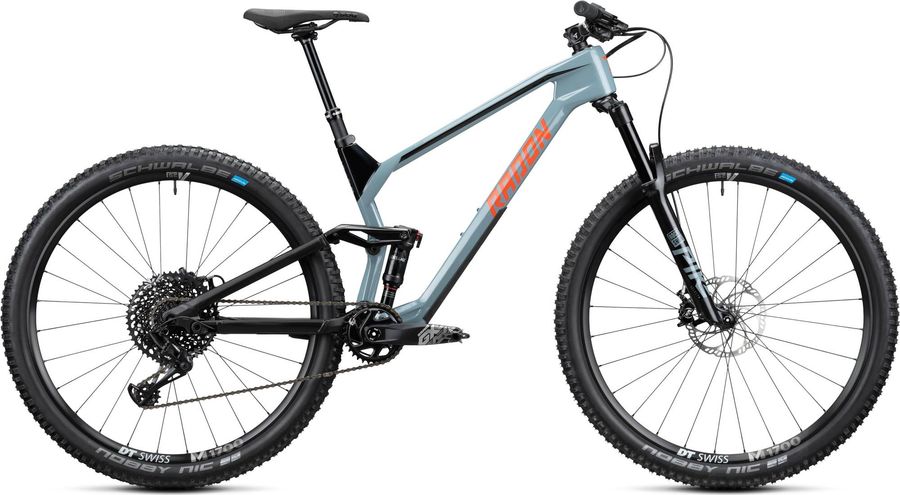

Radon SKEEN TRAIL CF 10.0 2020

About the Radon SKEEN TRAIL CF 10.0 2020

The Radon SKEEN TRAIL CF 10.0 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,2 kg.

Features

The Radon SKEEN TRAIL CF 10.0 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater
Pedals
not included
Components
Steam
Race Face Turbine Basic, 35mm; 16"/60mm, 18"/60mm, 20"/60mm, 22"/70mm
Saddle
SDG Radar
Headset
Acros AzX, ZS44/ZS56
Seatpost
SDG Tellis Dropper, 31.6mm; 16"/125mm, 18"/150mm, 20"/150mm, 22"/150mm
Handlebar
Race Face Turbine, 35 x 760mm, 10mm rise
Brake lever
Magura MT Trail Custom
Brakes
Magura MT Trail Custom
Drivetrain
Crankset
SRAM GX Eagle, DUB, 32T, Boost, 175mm
Shifter
SRAM NX Eagle, Shiftmix
Bottom bracket
SRAM DUB, PressFit, 92mm
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM SX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
SKEEN TRAIL CF 29; Material: Carbon mainframe, alloy rear triangle, Max. width tire: 2.4", Hanger: #10240
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Front suspension
RockShox Pike Select+ DebonAir 1832 g
Color
Diffusion Black, Gloss Black
Damper type
Charger 2.1 RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-PIKE-SELP-B3
Name
Pike Select+
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 120mm, Maxle Stealth
Weight
1832
Wheel size
27.5", 29"
Wheels
Rims
DT Swiss M1700 Spline 29, 25mm, 110/148mm
Tires
Schwalbe Nobby Nic, Addix-Speedgrip, TLE, Kevlar, 29" x 2.35"
Spokes
DT Swiss M1700 Spline wheelset
Rear hub
DT Swiss M1700 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear
Front hub
DT Swiss M1700 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
392,0
425,0
455,0
490,0
b
Seat tube angle
76,5º
76,4º
76,4º
76,4º
c
Top tube length
559,0
580,6
603,5
625,5
d
Head tube length
100,0
110,0
120,0
135,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
48,0
49,0
49,0
50,0
g
Trail
110,0
109,0
109,0
108,0
h
Wheelbase
1165,0
1186,0
1210,0
1233,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
31,6
31,6
31,6
31,6
k
Stack height
597,0
606,0
615,0
628,0
l
Reach
429,0
446,0
466,0
482,0
m
Standover height
709,5
736,8
746,0
756,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
740,0
761,0
785,0
808,0
