Radon Slide FE 9.0 2018

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,1 kg
Front travel
140mm
Rear travel
130mm

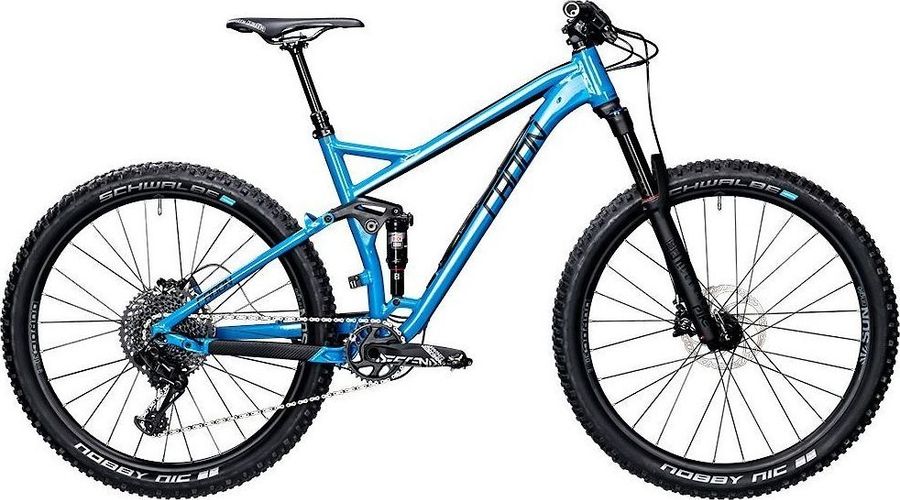

Radon Slide FE 9.0 2018

About the Radon Slide FE 9.0 2018

The Radon Slide FE 9.0 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,1 kg.

Features

The Radon Slide FE 9.0 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE10 slim
Components
Steam
Race Face Aeffect, 35mm clamp, 50mm length (16", 18"), 60mm length (20", 22")
Saddle
Selle Italia X1
Headset
Acros AiX, IS41/IS52
Seatpost
JD Vario dropper, 120mm travel (16", 18"), 150mm travel (20", 22")
Handlebar
Race Face Aeffect, 35mm clamp, 760mm width, 20mm rise
Brake lever
Magura MT Trail Custom
Brakes
Magura MT Trail Custom
Drivetrain
Crankset
SRAM Descendant 7k, 175mm length
Shifter
SRAM GX Eagle, 12-speed, Shiftmix
Bottom bracket
SRAM GXP, PressFit
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Monarch RT3 215 g
Body eyelet
No Bushing, Shock Block, Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 184x48, 190x51, 194x46, 197x48, 197x51, 197x54, 197x57, 200x51, 200x57, 216x63
Lockout force
219, 320, 380
Model
RS-MNR-RT3-D1
Name
Monarch RT3
Rebound tune
H, L, M
Shaft eyelet
Standard, Trek Mount
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
SUNringlé Duroc, 30mm
Tires
Schwalbe Nobby Nic, Addix-Speedgrip, TLE, Kevlar, 27.5" x 2.6"
Spokes
SUNringlé Duroc
Rear hub
SUNringlé Duroc, 110x15mm Boost front, 148x12mm Boost rear
Front hub
SUNringlé Duroc, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
425,0
470,0
500,0
530,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
569,0
587,0
603,0
621,0
d
Head tube length
105,0
115,0
125,0
135,0
e
Head tube angle
67,6º
67,6º
67,6º
67,6º
f
Rake
52,0
52,0
51,0
51,0
g
Trail
90,0
90,0
91,0
91,0
h
Wheelbase
1141,0
1159,0
1176,0
1194,0
i
Chainstay length
429,0
429,0
429,0
429,0
j
Bottom bracket drop
26,0
26,0
26,0
26,0
k
Stack height
600,0
609,0
619,0
628,0
l
Reach
407,0
422,0
435,0
450,0
m
Standover height
735,3
746,5
766,5
791,8
x
Bottom bracket height
329,0
329,0
329,0
329,0
y
Front center
713,0
731,0
748,0
766,0
