Radon Slide Trail 8.0 2019

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,5 kg
Front travel
150mm
Rear travel
140mm

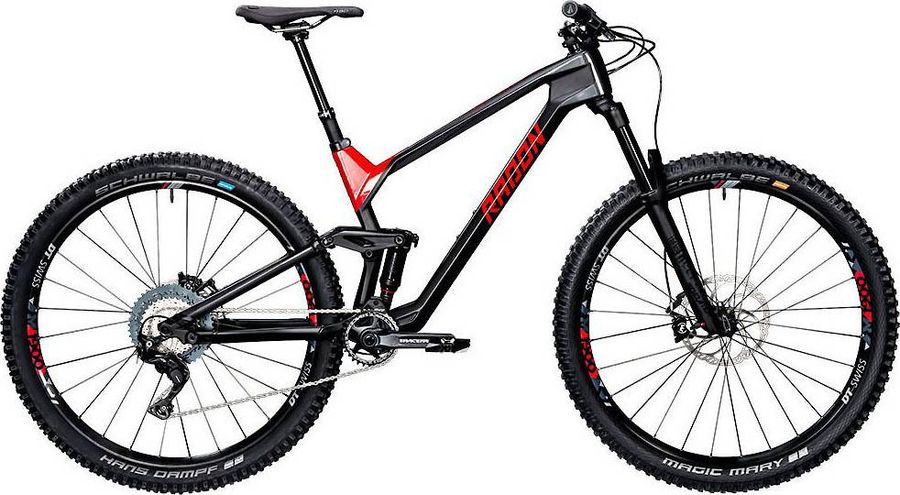

Radon Slide Trail 8.0 2019

About the Radon Slide Trail 8.0 2019

The Radon Slide Trail 8.0 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 13,5 kg.

Features

The Radon Slide Trail 8.0 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater
Components
Steam
Race Face AEffect R 35, 50mm
Saddle
SDG FLY MTN 2, CrMo
Headset
Acros AzX ZS44/ZS56
Seatpost
SDG Tellis, 125mm on 16", 150mm on 18"/20"/22"
Handlebar
Race Face AEffect, 35mm diameter, 760mm, 20mm rise
Brake lever
Magura MT5
Brakes
Magura MT5
Drivetrain
Crankset
Race Face Aeffect, direct mount, 170mm
Shifter
Shimano SLX SL-M7000-B, 11-speed, I-Spec B
Chain guide
MRP 1X
Bottom bracket
Race Face, pressfit, 92mm
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Frameset
Frame
Carbon Fiber
Rear suspension
RockShox Deluxe RT3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L3, L4, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-RT3-B1
Name
Deluxe RT3
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
DT Swiss M1900 Spline wheelset, 30mm inner width
Tires
Front: Schwalbe Magic Mary, Addix-Soft, TLE, Kevlar, 29"x2.35", Rear: Schwalbe Hans Dampf, Addix-Speedgrip, TLE, Kevlar, 29"x2.35"
Spokes
DT Swiss M1900 Spline wheelset
Rear hub
DT Swiss M1900 Spline wheelset
Front hub
DT Swiss M1900 Spline wheelset

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
392,0
425,0
455,0
490,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
563,0
584,0
607,0
629,0
d
Head tube length
100,0
110,0
120,0
135,0
e
Head tube angle
65,6º
65,6º
65,6º
65,6º
f
Rake
50,0
51,0
51,0
51,0
g
Trail
115,0
114,0
114,0
114,0
h
Wheelbase
1172,0
1194,0
1218,0
1240,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
k
Stack height
597,0
606,0
615,0
628,0
l
Reach
420,0
437,0
456,0
473,0
m
Standover height
721,0
748,0
757,0
767,0
x
Bottom bracket height
349,0
349,0
349,0
349,0
y
Front center
746,0
768,0
792,0
814,0
