Radon SLIDE TRAIL 8.0 2020

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
14,2 kg
Front travel
150mm
Rear travel
140mm

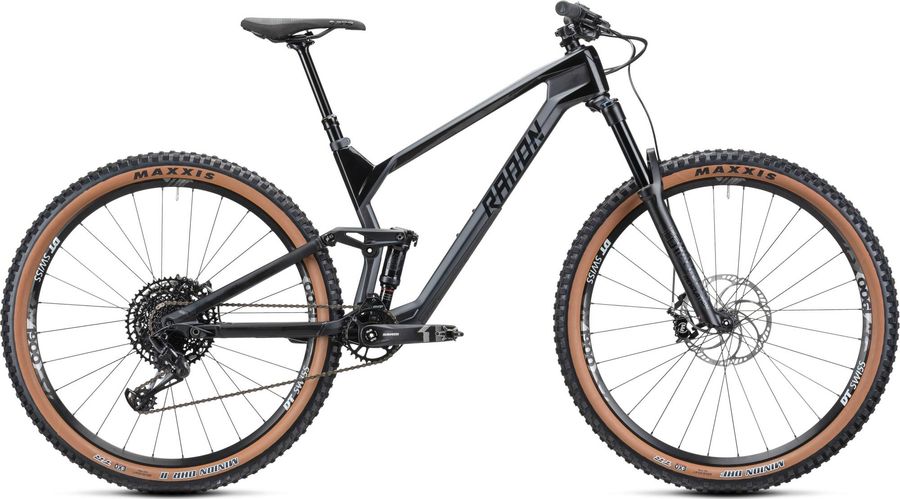

Radon SLIDE TRAIL 8.0 2020

About the Radon SLIDE TRAIL 8.0 2020

The Radon SLIDE TRAIL 8.0 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,2 kg.

Features

The Radon SLIDE TRAIL 8.0 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater
Pedals
not included
Components
Steam
Race Face Æffect R, 35mm; 16"/50mm, 18"/50mm, 20"/50mm, 22"/50mm
Saddle
SDG RADAR
Headset
Acros AzX, ZS44/ZS56
Seatpost
Radon Competition Dropper, 31.6mm; 16"/125mm, 18"/150mm, 20"/150mm, 22"/150mm
Handlebar
Race Face Æffect, 35 x 760mm, 20mm rise
Brake lever
Magura MT5
Brakes
Magura MT5
Drivetrain
Crankset
SRAM X1 1000 Eagle DUB, 30T, 170mm, Boost
Shifter
SRAM NX Eagle, Shiftmix
Chain guide
MRP 1X, ISCG05
Bottom bracket
SRAM DUB, PressFit, 92mm
Chain
SRAM SX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
SLIDE TRAIL 29; Material: Carbon mainframe, alloy rear triangle, Max. width tire: 2.4", Flip Chip for geometry adjusting, Hanger: #10240
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
DT Swiss M1900 Spline 29, 30mm, 110/148mm
Tires
Maxxis Minion DHF Skinwall Dual, EXO, TR, 29" x 2.5" WT
Spokes
DT Swiss M1900 Spline wheelset
Rear hub
DT Swiss M1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear
Front hub
DT Swiss M1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size 16" High 18" High 20" High 22" High
a
Seat tube length
392,0
425,0
455,0
490,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
563,0
584,0
607,0
629,0
d
Head tube length
100,0
110,0
120,0
135,0
e
Head tube angle
65,6º
65,6º
65,6º
65,6º
f
Rake
43,0
44,0
45,0
44,0
g
Trail
123,0
122,0
120,0
122,0
h
Wheelbase
1172,0
1194,0
1218,0
1240,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
11,0
11,0
11,0
11,0
k
Stack height
597,0
606,0
615,0
628,0
l
Reach
420,0
437,0
456,0
473,0
m
Standover height
721,0
748,0
757,0
767,0
x
Bottom bracket height
363,0
363,0
363,0
363,0
y
Front center
745,0
767,0
791,0
813,0
