Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,8 kg
Front travel
150mm
Rear travel
140mm

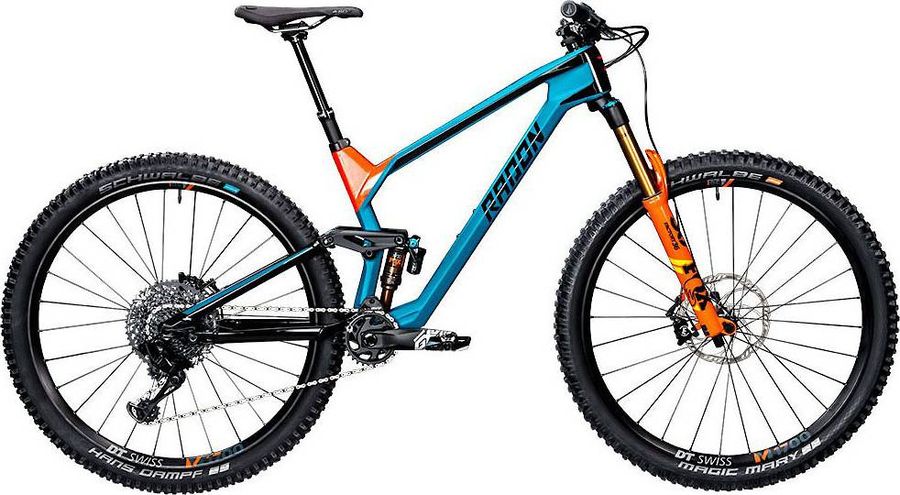

About the Radon Slide Trail 9.0 2019
The Radon Slide Trail 9.0 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 13,8 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
SDG Slater
|
|---|
|
Steam
|
Race Face AEffect R 35, 50mm
|
|---|---|
|
Saddle
|
SDG FLY MTN 2, CrMo
|
|
Headset
|
Acros AzX ZS44/ZS56
|
|
Seatpost
|
SDG Tellis, 125mm on 16", 150mm on 18"/20"/22"
|
|
Handlebar
|
Race Face AEffect, 35mm diameter, 760mm, 20mm rise
|
|
Brake lever
|
Magura MT5
|
|
Brakes
|
Magura MT5
|
|
Crankset
|
SRAM GX Eagle, DUB, 170mm
|
|---|---|
|
Shifter
|
SRAM GX Eagle, 12-speed, Shiftmix
|
|
Chain guide
|
MRP 1X
|
|
Bottom bracket
|
SRAM pressfit DUB MTB, 92mm
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Rear suspension
|
Fox Float DPX2 Factory
|
|
Front suspension
|
Fox 36 Float Factory Kashima
|
|
Rims
|
DT Swiss M1700 Spline wheelset, 30mm inner width
|
|---|---|
|
Tires
|
Front: Schwalbe Magic Mary, Addix-Soft, TLE, Kevlar, 29"x2.35", Rear: Schwalbe Hans Dampf, Addix-Speedgrip, TLE, Kevlar, 29"x2.35"
|
|
Spokes
|
DT Swiss M1700 Spline wheelset
|
|
Rear hub
|
DT Swiss M1700 Spline wheelset
|
|
Front hub
|
DT Swiss M1700 Spline wheelset
|
Geometry
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
|
a
Seat tube length
|
392,0
|
425,0
|
455,0
|
490,0
|
|
b
Seat tube angle
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
|
c
Top tube length
|
563,0
|
584,0
|
607,0
|
629,0
|
|
d
Head tube length
|
100,0
|
110,0
|
120,0
|
135,0
|
|
e
Head tube angle
|
65,6º
|
65,6º
|
65,6º
|
65,6º
|
|
f
Rake
|
50,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
115,0
|
114,0
|
114,0
|
114,0
|
|
h
Wheelbase
|
1172,0
|
1194,0
|
1218,0
|
1240,0
|
|
i
Chainstay length
|
427,0
|
427,0
|
427,0
|
427,0
|
|
j
Bottom bracket drop
|
25,0
|
25,0
|
25,0
|
25,0
|
|
k
Stack height
|
597,0
|
606,0
|
615,0
|
628,0
|
|
l
Reach
|
420,0
|
437,0
|
456,0
|
473,0
|
|
m
Standover height
|
721,0
|
748,0
|
757,0
|
767,0
|
|
x
Bottom bracket height
|
349,0
|
349,0
|
349,0
|
349,0
|
|
y
Front center
|
746,0
|
768,0
|
792,0
|
814,0
|
