BikeWise

Radon Slide Trail 9.0 2020

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
14,3 kg
Front travel
150mm
Rear travel
140mm

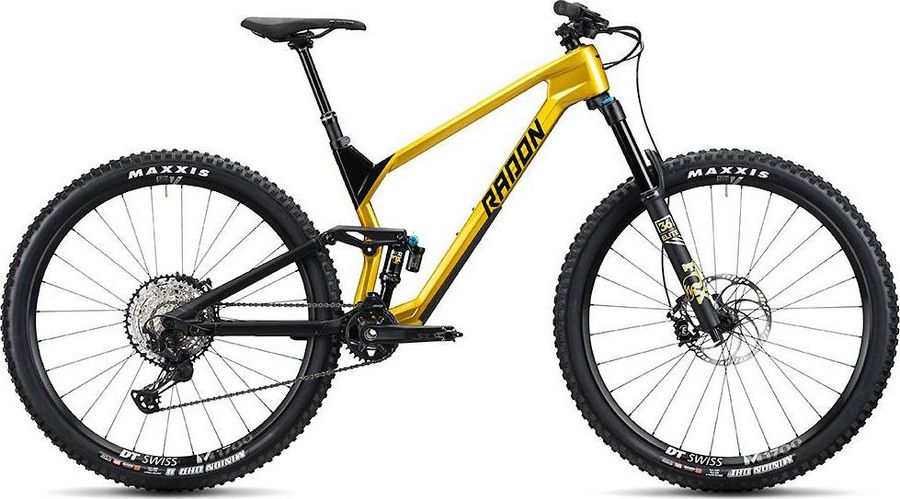

Radon Slide Trail 9.0 2020

About the Radon Slide Trail 9.0 2020

The Radon Slide Trail 9.0 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,3 kg.

Features

The Radon Slide Trail 9.0 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater
Components
Steam
Race Face Aeffect R, 35mm clamp, 50mm length
Saddle
SDG Radar
Headset
ACROS AzX, ZS44/ZS56
Seatpost
SDG Tellis Dropper, Drop: 125mm (16"), 150mm (18"/20"/22")
Handlebar
Race Face Aeffect, 35mm bore, 760mm width, 20mm rise
Brake lever
Magura MT5
Brakes
Magura MT5
Drivetrain
Crankset
Shimano SLX FC-M7100, 170mm length
Shifter
Shimano SLX SL-M7100-R, 12-speed
Chain guide
MRP 1x upper guide
Bottom bracket
Shimano BB-MT500PA, press-fit, 92mm
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Carbon Fiber
Front suspension
Fox 36 Float Performance Elite
Rear suspension
Fox Float DPX2 Performance EVOL
Wheels
Rims
DT Swiss M1700 Spline 29, 30mm internal width
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 29" x 2.5" WT, Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO+, TR, 29" x 2.4" WT
Spokes
DT Swiss M1700 Spline wheelset
Rear hub
DT Swiss M1700 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear
Front hub
DT Swiss M1700 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size 16" High 18" High 20" High 22" High
a
Seat tube length
392,0
425,0
455,0
490,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
563,0
584,0
607,0
629,0
d
Head tube length
100,0
110,0
120,0
135,0
e
Head tube angle
65,6º
65,6º
65,6º
65,6º
f
Rake
43,0
44,0
45,0
44,0
g
Trail
123,0
122,0
120,0
122,0
h
Wheelbase
1172,0
1194,0
1218,0
1240,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
11,0
11,0
11,0
11,0
k
Stack height
597,0
606,0
615,0
628,0
l
Reach
420,0
437,0
456,0
473,0
m
Standover height
721,0
748,0
757,0
767,0
x
Bottom bracket height
363,0
363,0
363,0
363,0
y
Front center
745,0
767,0
791,0
813,0
