Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,05 kg
Front travel
170mm
Rear travel
170mm

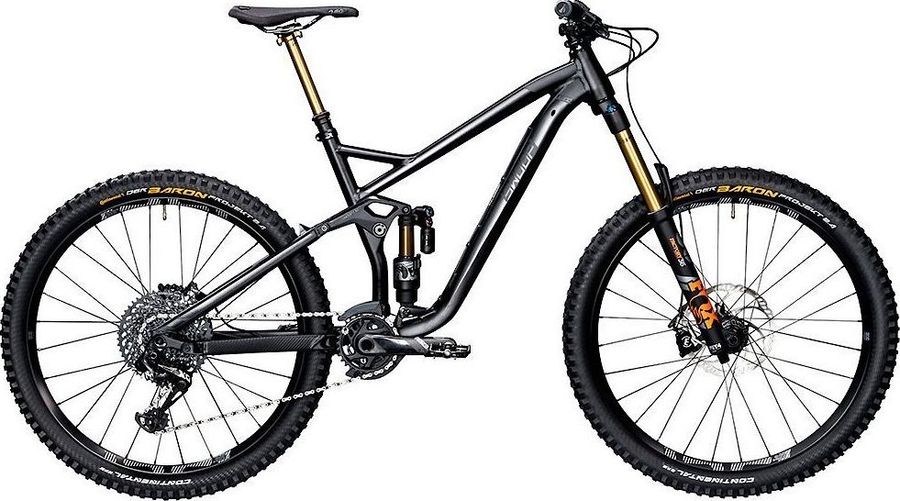

About the Radon Swoop 170 10.0 2018
The Radon Swoop 170 10.0 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,05 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
SDG Slater
|
|---|
|
Steam
|
Race Face Turbine Basic R, 35mm clamp, 40mm length (16", 18"), 50mm length (20" 22")
|
|---|---|
|
Saddle
|
SDG Fly Mtn 2, CrMo rails
|
|
Headset
|
FSA, ZS44/ZS56
|
|
Seatpost
|
FOX Transfer Factory dropper, 125mm travel (16"), 150mm travel (18", 20", 22")
|
|
Handlebar
|
Race Face Atlas, 35mm clamp, 800mm width, 35mm rise
|
|
Brake lever
|
Magura MT5
|
|
Brakes
|
Magura MT5
|
|
Crankset
|
SRAM Descendant Eagle Carbon, 170mm length
|
|---|---|
|
Shifter
|
SRAM X01 Eagle, 12-speed, Shiftmix
|
|
Chain guide
|
e*thirteen TRS+
|
|
Bottom bracket
|
SRAM GXP, BSA 73
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Aluminum
|
|---|---|
|
Rear suspension
|
Fox Float X2 Factory
|
|
Front suspension
|
Fox 36 Float Factory Kashima
|
|
Rims
|
e*thirteen TRS+
|
|---|---|
|
Tires
|
Continental Baron Project, ProTection Apex, Black Chilli compound, 27.5" x 2.4"
|
|
Spokes
|
e*thirteen TRS+
|
|
Rear hub
|
e*thirteen TRS+, 110x15mm Boost front, 148x12mm Boost rear
|
|
Front hub
|
e*thirteen TRS+, 110x15mm Boost front, 148x12mm Boost rear
|
Geometry
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
|
a
Seat tube length
|
430,0
|
450,0
|
470,0
|
490,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
576,0
|
593,0
|
610,0
|
627,0
|
|
d
Head tube length
|
110,0
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
65,8º
|
65,8º
|
65,8º
|
65,8º
|
|
f
Rake
|
46,0
|
46,0
|
47,0
|
47,0
|
|
g
Trail
|
109,0
|
109,0
|
108,0
|
108,0
|
|
h
Wheelbase
|
1183,0
|
1,2e3
|
1218,0
|
1236,0
|
|
i
Chainstay length
|
424,9
|
424,9
|
424,9
|
424,9
|
|
j
Bottom bracket drop
|
14,0
|
14,0
|
14,0
|
14,0
|
|
k
Stack height
|
599,0
|
599,0
|
608,0
|
617,0
|
|
l
Reach
|
439,0
|
456,0
|
469,0
|
483,0
|
|
m
Standover height
|
712,5
|
727,5
|
745,5
|
764,5
|
|
x
Bottom bracket height
|
341,0
|
341,0
|
341,0
|
341,0
|
|
y
Front center
|
758,0
|
775,0
|
793,0
|
811,0
|
