Radon Swoop 170 8.0 2018

MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,7 kg
Front travel
170mm
Rear travel
170mm

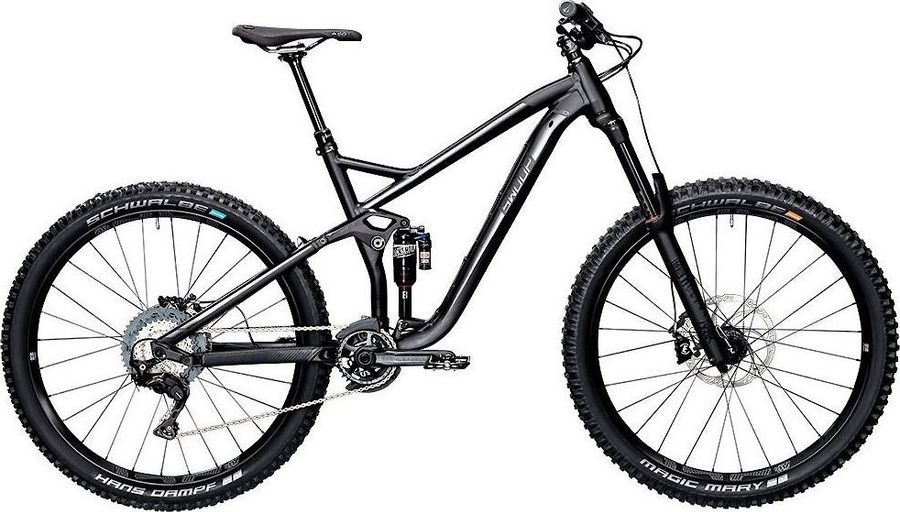

Radon Swoop 170 8.0 2018

About the Radon Swoop 170 8.0 2018

The Radon Swoop 170 8.0 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,7 kg.

Features

The Radon Swoop 170 8.0 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater
Components
Steam
Race Face Turbine Basic R, 35mm clamp, 50mm length
Saddle
SDG Fly Mtn 2, CrMo rails
Headset
FSA, ZS44/ZS56
Seatpost
JD Vario dropper, 120mm travel (16"), 150mm travel (18", 20", 22")
Handlebar
Race Face Atlas, 35mm clamp, 800mm width, 35mm rise
Brake lever
Magura MT5
Brakes
Magura MT5
Drivetrain
Crankset
Race Face Aeffect SL, 170mm length
Shifter
Shimano SLX SL-M7000-I, 11-speed, I-Spec
Chain guide
e*thirteen TRS+
Bottom bracket
Race Face, BSA 73
Chain
Shimano CN-HG701 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG701-11
Pin link plate
SIL-TEC
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Frameset
Frame
Aluminum
Front suspension
RockShox Lyrik RCT3 Dual Position Air, Solo Air 2005 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
42mm (27.5"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-LYRK-RCT3-A1
Name
Lyrik RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27/29 Solo Air, RCT3, 180mm travel
Weight
2005
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
RockShox Monarch Plus RC3
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, L3, M
Eye to eye stroke
190x51, 200x51, 200x57, 216x63
Model
RS-MNRP-RC3-B4
Name
Monarch Plus RC3
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Wheels
Rims
e*thirteen TRS
Tires
Front: Schwalbe Magic Mary, Addix-Soft, TLE, Kevlar, 27.5" x 2.35", Rear: Schwalbe Hans Dampf, Addix-Speedgrip, TLE, Kevlar, 27.5" x 2.35"
Spokes
e*thirteen TRS
Rear hub
e*thirteen TRS, 110x15mm Boost front, 148x12mm Boost rear
Front hub
e*thirteen TRS, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
430,0
450,0
470,0
490,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
576,0
593,0
610,0
627,0
d
Head tube length
110,0
110,0
120,0
130,0
e
Head tube angle
65,8º
65,8º
65,8º
65,8º
f
Rake
46,0
46,0
47,0
47,0
g
Trail
109,0
109,0
108,0
108,0
h
Wheelbase
1183,0
1,2e3
1218,0
1236,0
i
Chainstay length
424,9
424,9
424,9
424,9
j
Bottom bracket drop
14,0
14,0
14,0
14,0
k
Stack height
599,0
599,0
608,0
617,0
l
Reach
439,0
456,0
469,0
483,0
m
Standover height
712,5
727,5
745,5
764,5
x
Bottom bracket height
341,0
341,0
341,0
341,0
y
Front center
758,0
775,0
793,0
811,0
