BikeWise

Radon Swoop 8.0 2019

MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,2 kg
Front travel
170mm
Rear travel
170mm

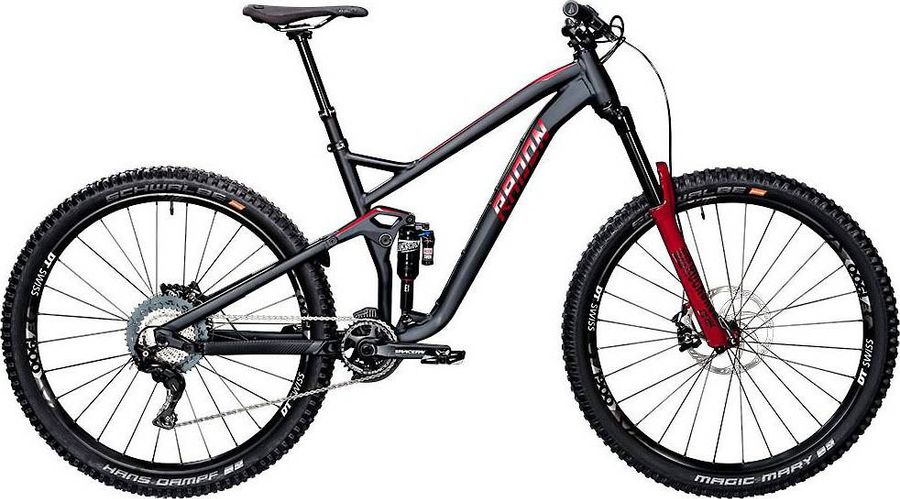

Radon Swoop 8.0 2019

About the Radon Swoop 8.0 2019

The Radon Swoop 8.0 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 14,2 kg.

Features

The Radon Swoop 8.0 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater
Components
Steam
Race Face AEffect R 35, 40mm
Saddle
SDG FLY MTN 2, CrMo
Headset
FSA, ZS44/ZS56
Seatpost
SDG Tellis, 150mm
Handlebar
Race Face AEffect, 35mm diameter, 780mm, 20mm rise
Brake lever
Magura MT5
Brakes
Magura MT5
Drivetrain
Crankset
Race Face Aeffect, direct mount, 170mm
Shifter
Shimano SLX SL-M7000-B, 11-speed, I-Spec B
Chain guide
e*thirteen TRS+
Bottom bracket
Race Face, BSA 73
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Frameset
Frame
Aluminum
Rear suspension
RockShox Monarch Plus RC3
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, L3, M
Eye to eye stroke
190x51, 200x51, 200x57, 216x63
Model
RS-MNRP-RC3-B4
Name
Monarch Plus RC3
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Front suspension
RockShox Lyrik RC2 DebonAir
Color
BoXXer Red, Diffusion Black, Gloss Black
Damper type
Charger 2 RC2
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-RC2-C1
Name
Lyrik RC2
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
DT Swiss E1900 Spline wheelset, 30mm inner width
Tires
Front: Schwalbe Magic Mary, Addix-Soft, TLE, Kevlar, 29"x2.35", Rear: Schwalbe Hans Dampf, Addix-Soft, TLE, Kevlar, 29"x2.35"
Spokes
DT Swiss E1900 Spline wheelset
Rear hub
DT Swiss E1900 Spline wheelset
Front hub
DT Swiss E1900 Spline wheelset

Geometry

Size 17" 19" 21"
a
Seat tube length
435,0
455,0
475,0
b
Seat tube angle
76,8º
76,8º
76,8º
c
Top tube length
602,0
620,0
638,0
d
Head tube length
110,0
120,0
130,0
e
Head tube angle
65,8º
65,8º
65,8º
f
Rake
51,0
51,0
51,0
g
Trail
112,0
112,0
112,0
h
Wheelbase
1238,0
1256,0
1275,0
i
Chainstay length
446,0
446,0
446,0
j
Bottom bracket drop
26,0
26,0
26,0
k
Stack height
639,0
648,0
657,0
l
Reach
463,0
477,0
492,0
m
Standover height
736,0
754,0
767,0
x
Bottom bracket height
348,0
348,0
348,0
y
Front center
793,0
811,0
830,0
